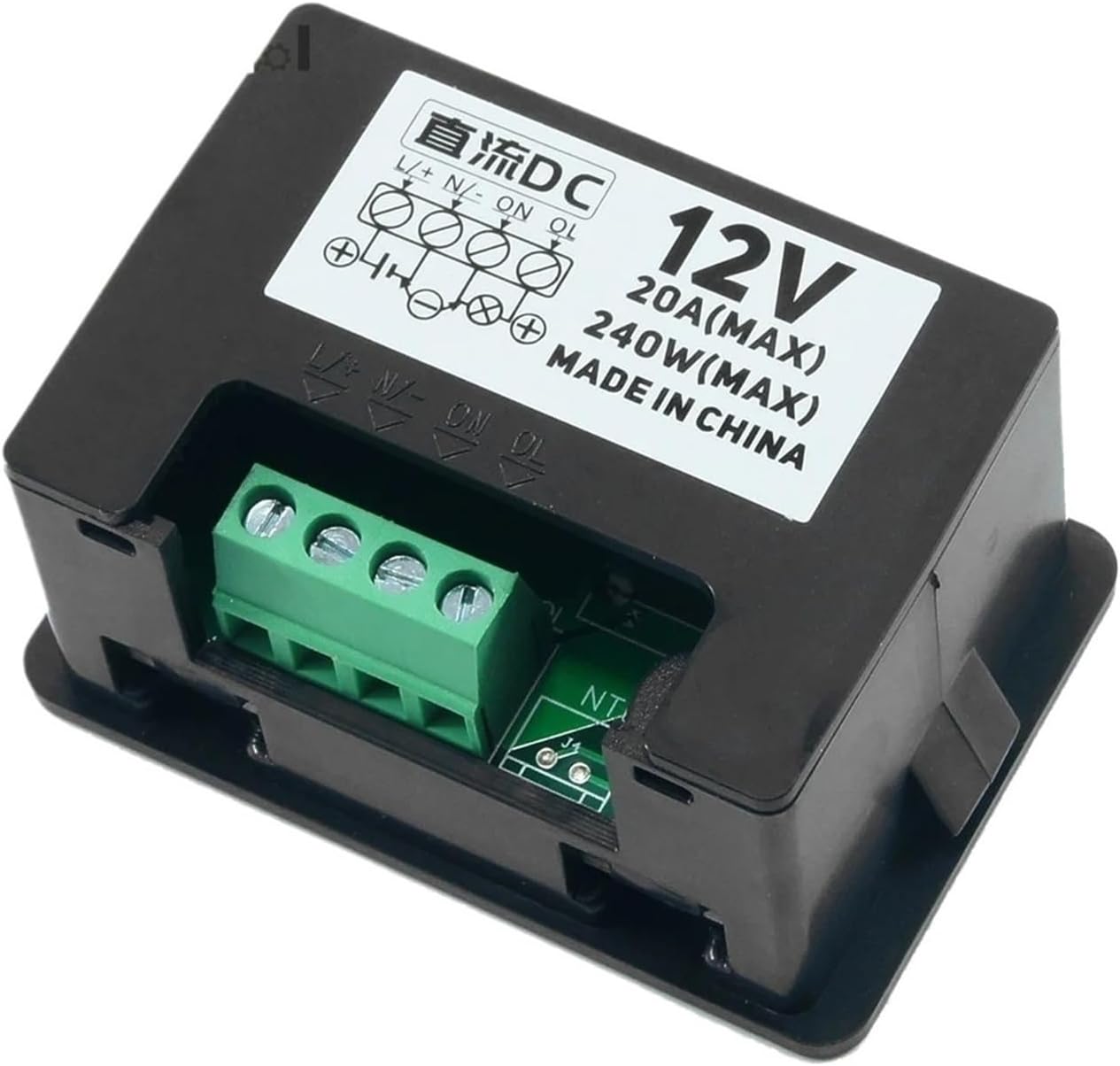

0-999s/min/hour T2310 Digital Time Controller Countdown Timer Switch DC 12V 24V A220VC 110V Delay Timer Relay Power Supply(AC110C-220V)

T2310 Digital Time Controller Countdown Timer Switch DC 12V 24V A220VC 110V Delay Timer Relay Power Supply Feature:T2310 is a time-controlled relay with 1 normally open relayIt can be divided into three specifications: DC12V, DC24V and ACA110~220V according to different working voltagesFixed bit pass, off timing display Settings, independent timing unit, so that large time span can be realizedOptimized setting operation, timing on, timing off, infinite cycle switch setting more convenient, more intuitive1~999 times alternate work and infinite cycle work independent setting, the maximum extent to meet the needs of useBasic parameters:Operating voltage: DC12V, DC24V, AC110~220VLoad power: 240W, 480W, 2200W (the load power marked on the label shall prevail)Timing range: 0~999 (seconds, minutes, hours)Minimum unit: 1 second Error: 20ppnTiming type: non - clock countdownTimed startup: SupportedTimed shutdown: SupportedInfinite loop: Supports infinite switching loopQuantitative cycle: Support 1~999 cycle switchCase material: ABSIndependent timing unit: SupportedProgram trigger: Support automatic trigger and manual trigger switch, factory default automatic triggerSetting Lock: SupportedOutput type: contact live, active outputProduct size: 67×45×34mmInstallation hole size: 63×42mm (embedded installation)Operating voltage = Input voltage = Output voltage = label voltagePackage Include :Time control relay X1Power Source : DCTheory : Time RelayContact Load : Low PowerModel Number : DC12V 24V AC110-220VVoltage : 220VProtect Feature : SealedUse : General PurposeType : Time RelayKey Word : T2310 Time Relay

• 0-999s/min/hour T2310 Digital Time Controller Countdown Timer Switch DC 12V 24V A220VC 110V Delay Timer Relay Power Supply
