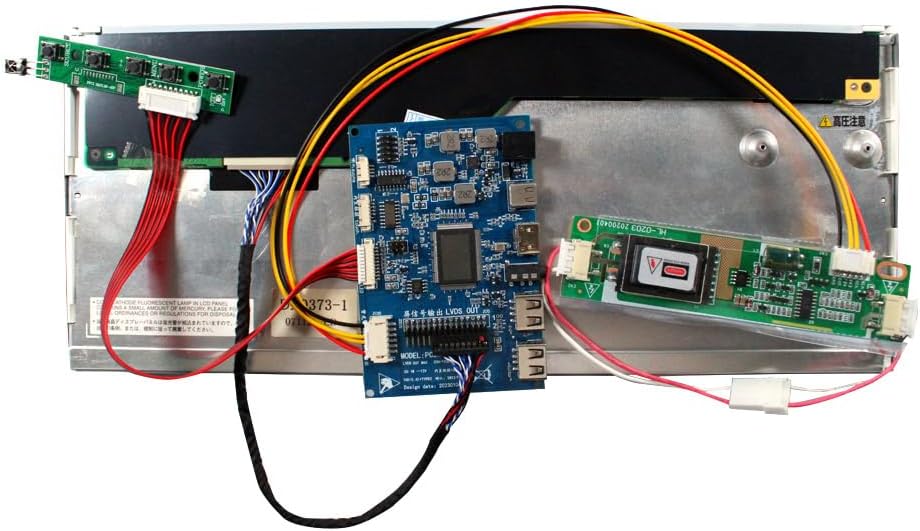

12.3 inch 1280x480 LQ123K1LG03 TFT Long Strip Wide Bar LCD Display and USB C USB Controller Board
Product details
| Management number | 211055635 | Release Date | 2026/04/04 | List Price | $36.00 | Model Number | 211055635 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
LCD Controller Board:Input Power Adapter: 12Vdc More than 2A.Come In Standby Model When Not Input SignalStandby Model 2x2W(1.4) USB C 2xUSB(keyboard mouse)Audio Input: Type-CAudio Output: Speaker Connector OSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 99.5mm x65.8mm x 11mm12.3" LQ123K1LG03 1280X480 LCD Screen:Display Mode TN, Normally White, Transmissive Resolution 1280(RGB)×480Outline Size 312.4 ×130.4×8 (H×V×D)Display Area 291.84 × 109.44 (H×V) Brightness 330 cd/m² (Typ.)Contrast Ratio 400:1 (Typ.) (TM) Viewing Angle 65/65/50/60 (Typ.)(CR≥10) [Left / Right / Up / Down]Interface 20 pins LVDS (1 ch, 8-bit) , ConnectorBacklight CCFLInput Voltage 3.3V (Typ.)Packing list :1× USB C LCD Controller Board1× 12.3inch LQ123K1LG03 1280X480 LCD Screen1× LVDS Cable1× Keyboard With Cable
- 【Compatible screen model no.】Working with 12.1 inch LB121S03-TD01 800x600 4:3 LCD Screen
- 【LCD Driver Board】Video Input: VGA,Pls use it in insulated environment.
- 【Input Power】12V DC 2A ,port size :5.5x2.1mm.Pls prepare the power adapter by yourself.
- 【Plug and play】Connecting cables and ports according to link picture details ,Power on and enter cable ,the screen can work well after powering.
- 【Packing lists】1× VGA LCD Controller Board RT2270C-806,1× LVDS Cable,1× Converter Board,1× Keyboard With Cable
| UPC | 619438596568 |
|---|---|
| Brand | FanyiTek |
| Resolution | HD |
| Screen Size | 12.3 Inches |
| Display Type | LCD |
| Manufacturer | FanyiTek |
| Screen Finish | Glossy |
| Native Resolution | 1280 x 800 pixels |
| Display Technology | LCD |
| Hardware Connectivity | DisplayPort |
| Connectivity Technology | HDMI |
| Total Number of HDMI Ports | 1 |
