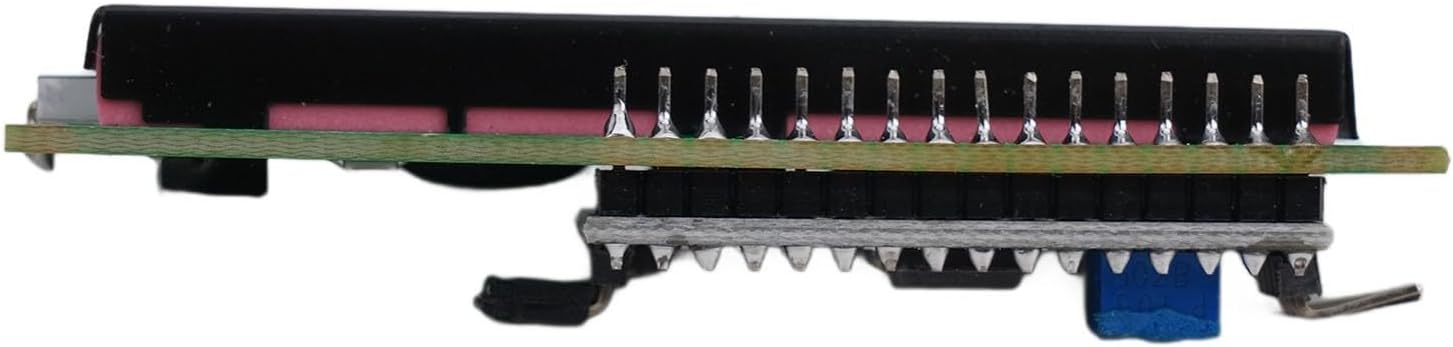

1602 LCD Module 16x2 Character Display with IIC Interface, 5V Serial LCD Screen for Arduino and For Raspberry Pi, Blue or Yellow Green Backlight Option(D)

Product description Feature:*LCD screen can display 2 lines x 16 characters, operating voltage: 5V; with a potentiometer to adjust backlight and contrast.*Fewer I/O ports are occupied, only four- VCC, GND, SDA(serial data line), SCL(serial clock line), cabling: GND—GND; VCC- VCC; SDA-A4; SCL—A5, LCD display module in yellow-green color.*Supports IIC protocol. The I2C LCD1602 library is included so you can for access it directly to adjust backlight and contrast.*Application The LCD module is used to display characters, letters, numbers, real-time clock and temperature.*1602 LCD display with I2C series interface is compatible for Arduino and for Raspberry Pi, Display function: LCD display with I2C series interface can be used to display real-time clock, temperature, humidity, etc.Specification:Part Name: 1602 LCD screen moduleColor: As shownSize: 80*36mm/3.14*1.41inMaterial: plasticWith IIC: optionalDisplay: 2 lines x 16 charactersBacklight: blue screen, yellow-green screenFour Pin Definition: GND, VCC, SDA, SCLOperating voltage: 5VContrast adjustment: potentiometerBacklight adjustment: for JumperWiring:GND—GND; VCC- VCC; SDA-A4; SCL—A5Package Contents:1*1602 LCD screen module Manufacturer Contact Information no

• 【LCD Module Shield with 2 Lines x 16 Characters】This LCD screen module can display 2 lines x 16 characters, providing clear and concise information. The operating voltage is 5V, and it comes with a potentiometer for easy adjustment of backlight and contrast.
• 【Efficient I/O Port Usage】With only four occupied I/O ports - VCC, GND, SDA, and SCL, this LCD module ensures simplified and efficient wiring. Connect GND to GND; VCC to VCC; SDA to ; SCL to AThe LCD display module features a yellow-green color.
• 【IIC Protocol Support】This LCD module supports the IIC protocol, allowing for easy and direct to adjust backlight and contrast. You can utilize the provided I2C LCD1602 library to conveniently control these functions.
• 【 Applications】Perfect for displaying characters, letters, numbers, real-time clock, and temperature, this LCD module serves various purposes. It is compatible with and for Pi devices, offering functions such as displaying real-time clock, temperature, humidity, and more.
