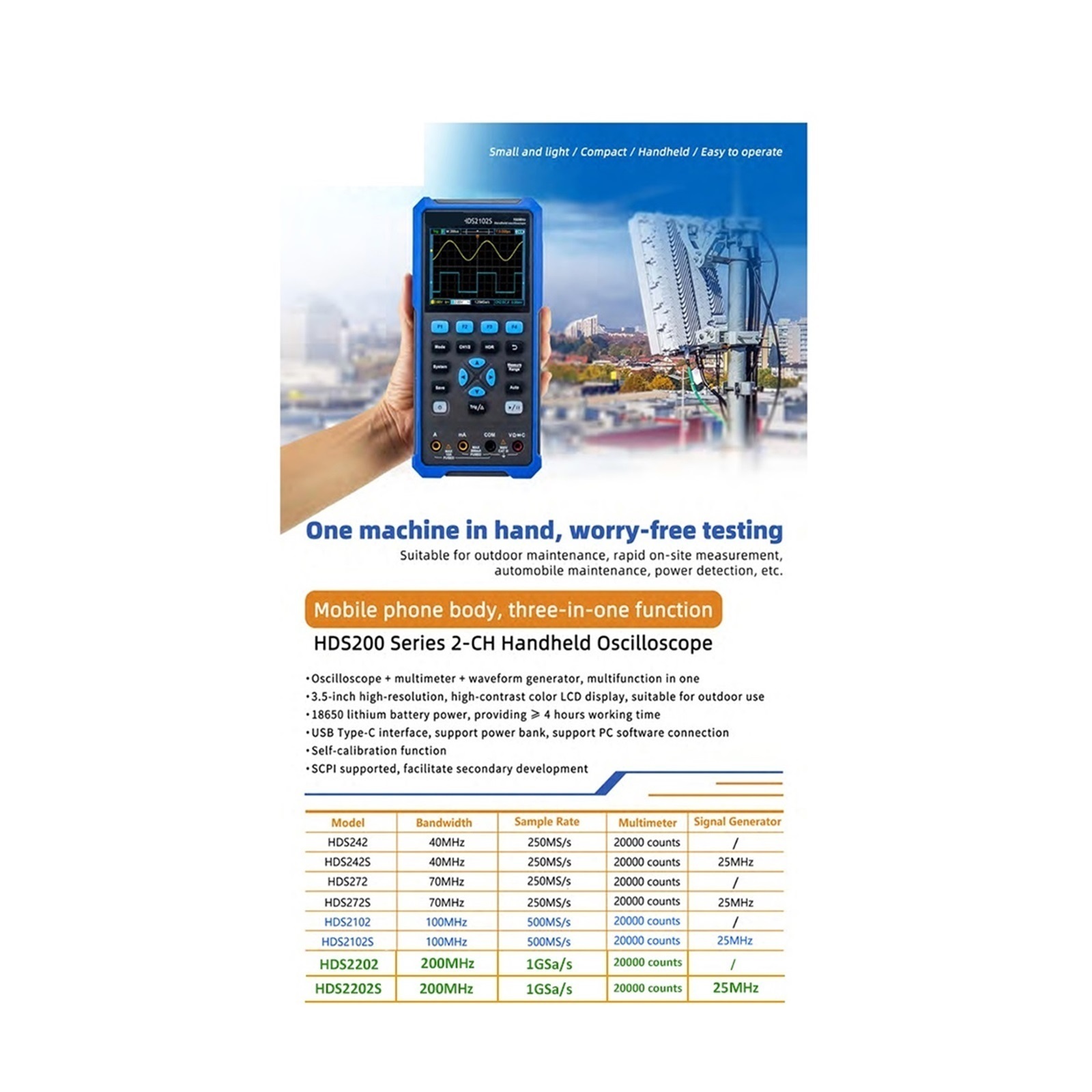

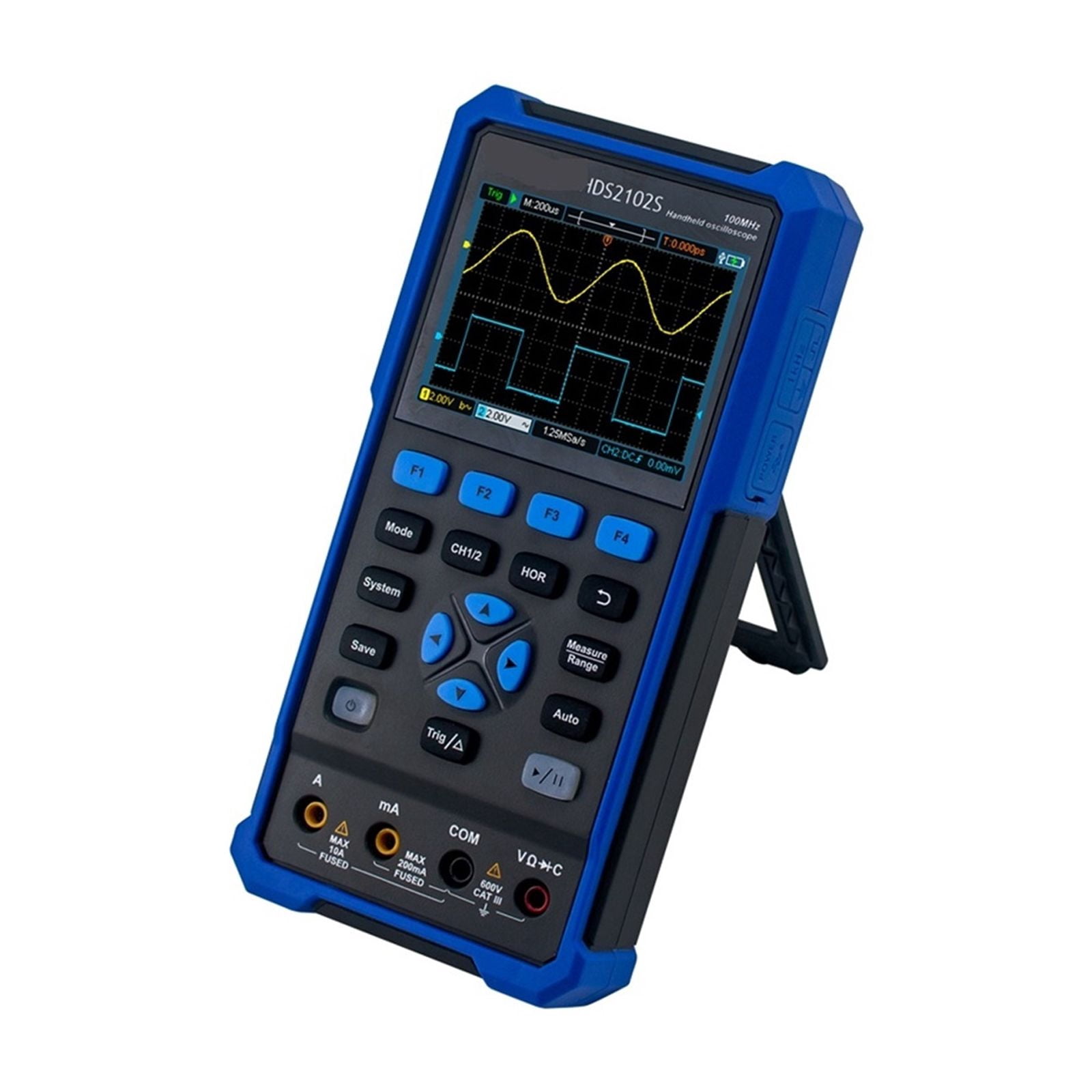

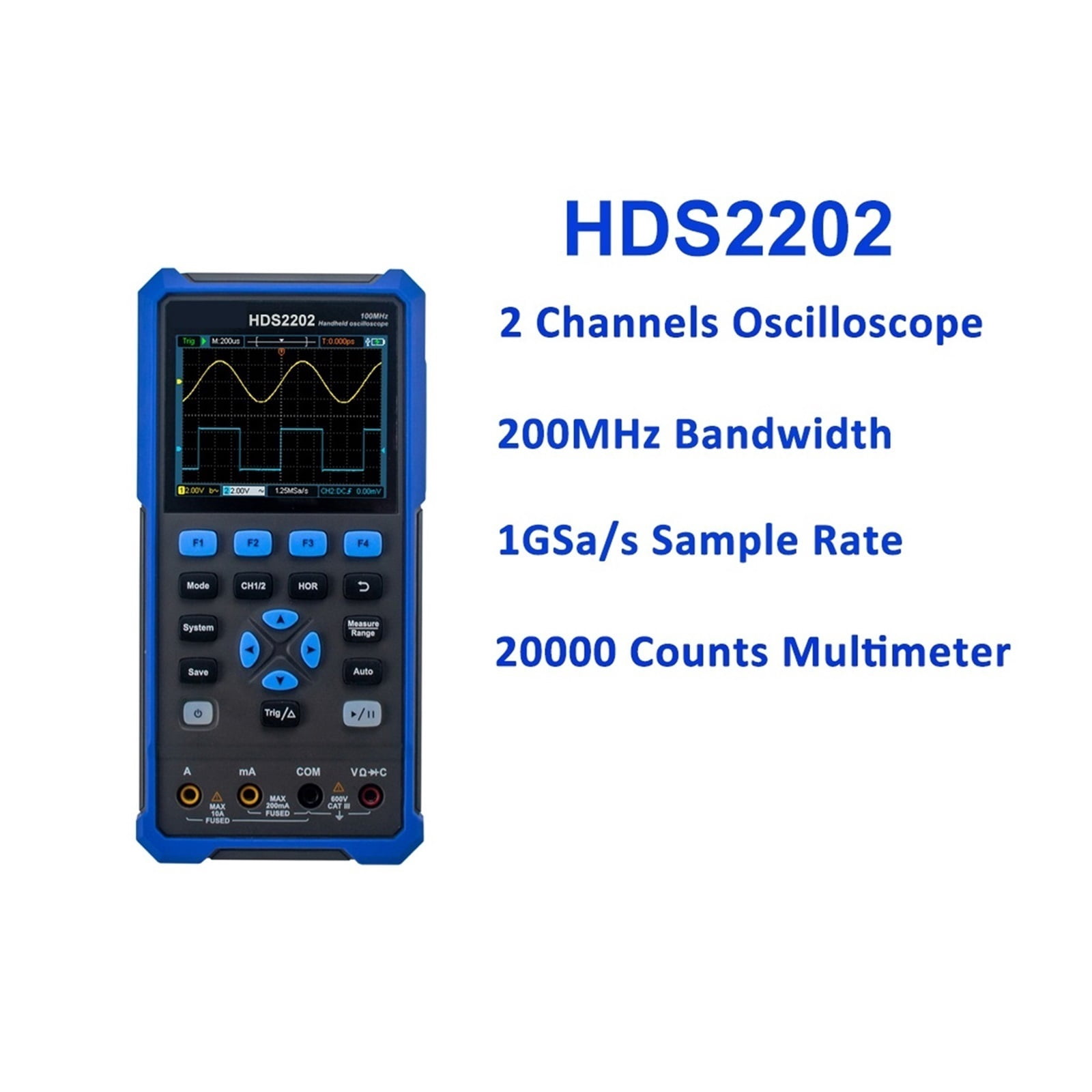

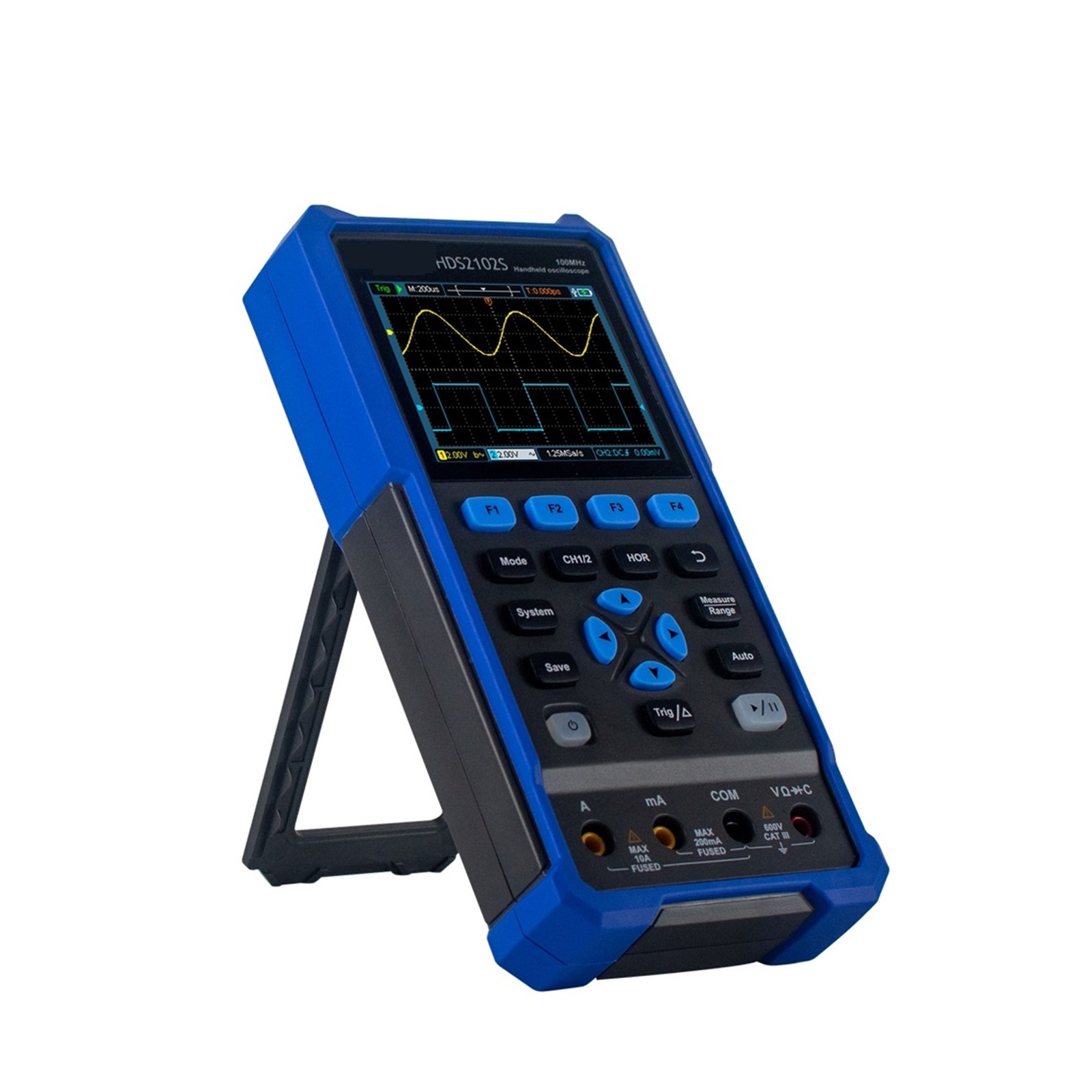

2CH HDS2202S 200MHz 1GSa/s Handheld Oscilloscope Multimeter 25MHz Waveform Signal Generator 3.5inch USB Test Tool ,Professional Designed

<p>Specifications</p><p>Battery Demountable Yes</p><p>Max Waveform Capture Rate 30,000wfm/s</p><p>Record Length 8K</p><p>Model Number HDS2202S</p><p>Real Time Sampling Rate 1GSa/S</p><p>Display resolution 320*240 Pixels</p><p>Display Size 3.0 - 4.9 Inches</p><p>Band Width 100-349MHz</p><p>Digital Channels 2</p><p>DIY Supplies ELECTRICAL</p><p>Feature 1</p><p>200MHz Bandwidth</p><p>Feature 2</p><p>1GSa/s Sample Rate</p><p>Feature 3</p><p>25MHz Waveform Generator</p><p>Feature 4</p><p>3 in 1 Handheld Oscilloscop</p><p></p><p>Oscilloscope is the most commonly used tool for designing and testing electronic devices and devices. Digital storage oscilloscopes (DSO) and mixed signal oscilloscopes (MSO) are powerful instruments used to display and measure electronic signals that change over time, and can help determine which device is operating normally and which device is malfunctioning. An oscilloscope can also help you determine whether newly designed devices can operate as you want</p><p></p><p>What is an oscilloscope and why do you need it?</p><p>Signal integrity</p><p>The main purpose of an oscilloscope is to accurately display electronic signals. Therefore, signal integrity is very important. Signal integrity refers to the ability of an oscilloscope to reconstruct waveforms and accurately display the original signal. Due to the meaningless testing when the waveform of the oscilloscope is different from the real signal, an oscilloscope with low signal integrity is of no value. However, no matter how high the performance of the oscilloscope is, it cannot fully reproduce the real signal. This is because when you connect the oscilloscope to the circuit, it becomes a part of the circuit. In other words, there will be some load effects. Although instrument manufacturers try their best to minimize load effects, they still exist to some extent.</p><p></p><p>digital oscilloscope, Oscilloscopes, Electronic Measuring Instruments, Measurement &amp; Analysis Instruments</p><p>Related Products: </p><p>oscilloscope, </p><p>portable oscilloscope, </p><p>automotive oscilloscope, </p><p>oscilloscope automotive, </p><p>lab oscilloscopes, </p><p>osciloscopio, </p><p>osciloscopio automotriz, </p><p>handheld oscilloscope, </p><p>digital oscilloscope, </p><p>usb oscilloscope</p>

• + USB Type-C interface, support power bank, support PC software connection
• + Self-calibration function
• + Oscilloscope + multimeter + waveform generator, multifunction in one
• + 3.5-inch high-resolution, high-contrast color LCD display, suitable for outdoor use
• + 18650 lithium battery, comprehensive power consumption 3W, can work continuously for about 6 hours
