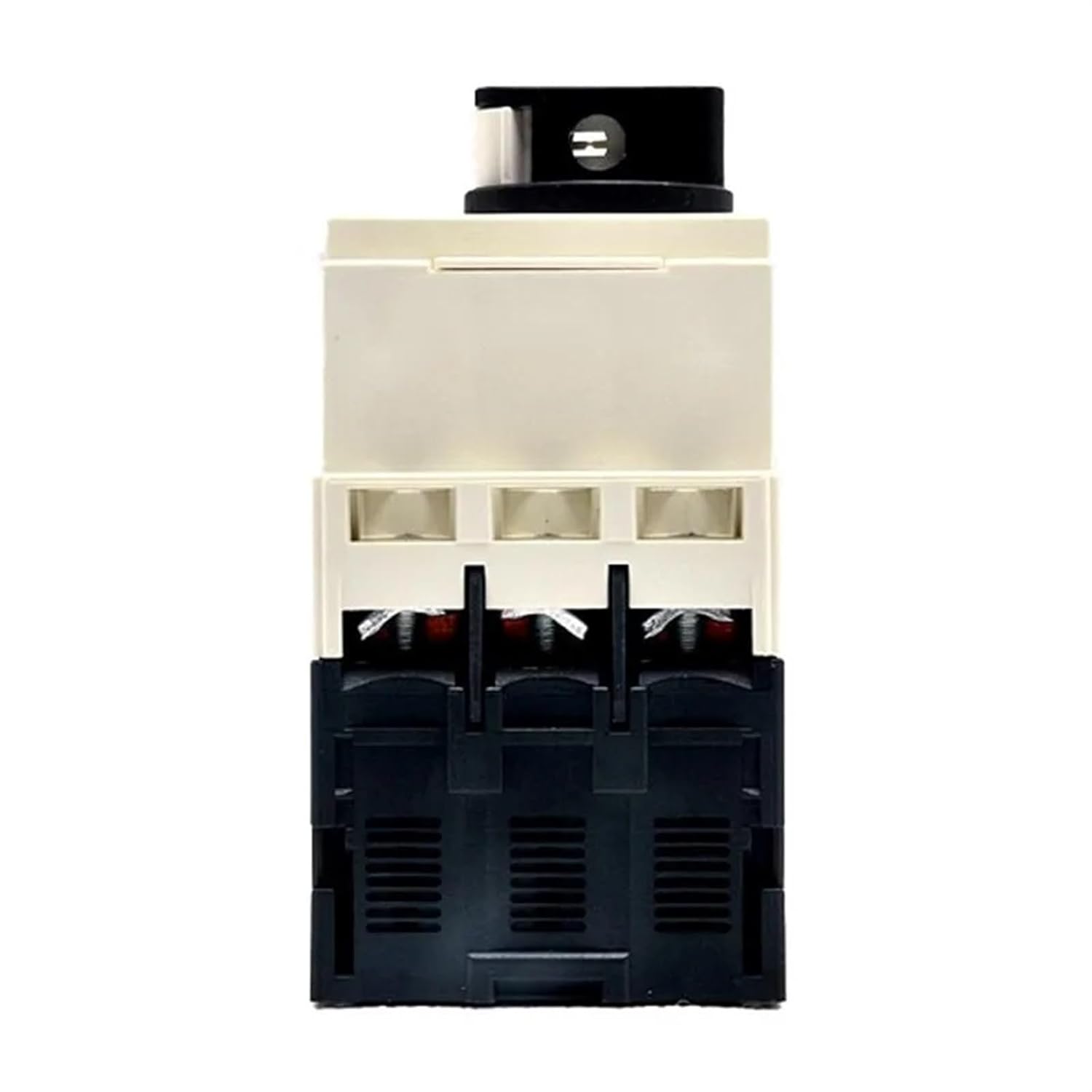

3P Thermal Magnetic Circuit Breaker GV2PM01C Motor Protection Switch Control Setting Current Range 0.1-0.16A 100KA 1Pcs

Hydraulic-Magnetic Circuit BreakersMain informationProduct TeSysproduct nameGV2Product short nameGV2PMproduct typebreakerApplicationsMotor protectionNumber of poles3PAdditional informationNetwork TypeACNetwork frequency50/60 Hz in accordance with IEC 60947-2 Installation methodRail mountingInstallation locationVertical horizontal directionMotor power (kW)0.00...0.37 kW on 440 V AC 50/60 Hz 0.00...0.37 kW on 415 V AC 50/60 Hz 0.00...0.37 kW on 400 V AC 50/60 Hz 0.00...0.37 kW on 230 V AC 50/60 HzRated current [In]1.6 ATrip unit typeThermal magneticElectromagnetic trip current1.2 AThermal overload protection setting range0.1...0.16 AIsolation functionApplicable to IEC 60947-1 § 7-1-6Mechanical shock resistance0.5 J IK04Phase loss sensitivityIs in accordance with IEC 60947-4-1 § 7-2-1-5-2Use categoryAC-3 complies with IEC 60947-4-1 AC class complies with IEC 60947-2Rated working voltage [Ue]690 V AC 50/60 Hz in accordance with IEC 60947-2Rated insulation voltage [Ui]600 V AC 50/60 Hz in accordance with UL 508 690 V AC 50/60 Hz in accordance with IEC 60947-2 600 V AC 50/60 Hz in accordance with CSA C22.2 No 14Conventional heating current [Ith]0.16 A in accordance with IEC 60947-4-1Rated impulse withstand voltage [Uimp]6 kV in accordance with IEC 947-2Power consumption per pole2.5 WMechanical life100000 timesElectrical life100000 times for AC-3 on 440 V In 100000 times for AC-3 on 440 V In/2Maximum number of conversions25 cyc/hspecified loadContinuously in accordance with IEC 60947-4-1Wiring abilityPower circuit: Screw press-in terminal 2 1...6 mm2 Cable selection: Single-strand hard wire without twist terminal Power circuit: S
