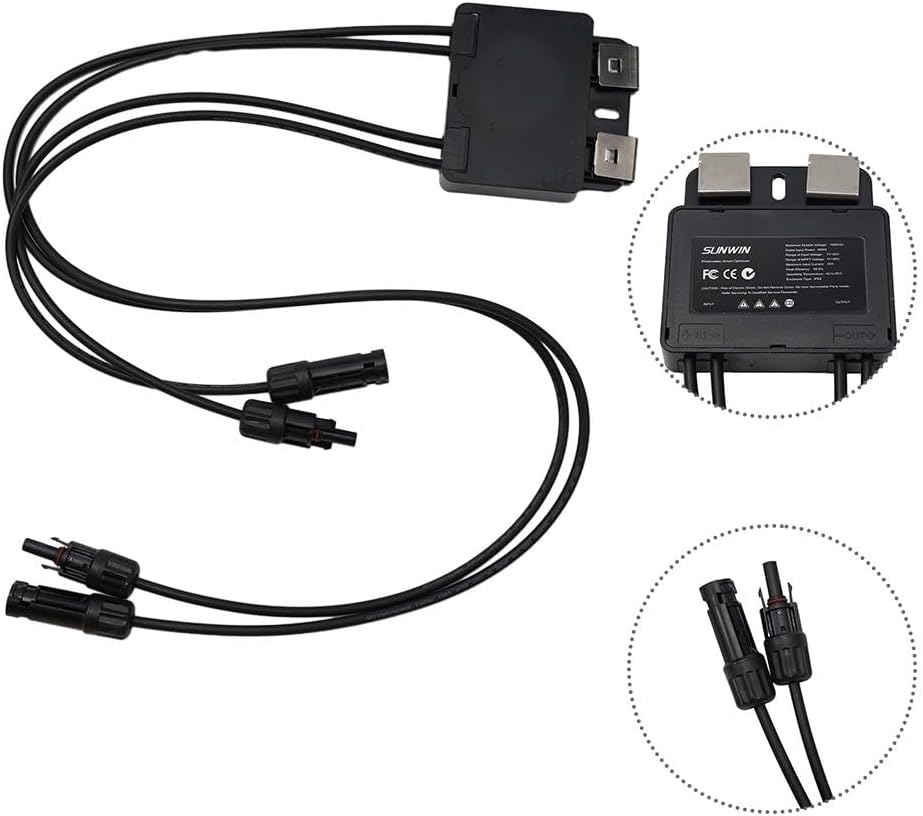

600W MPPT Solar Panel Module Optimizer, Improve Power Generation Efficiency By 20-30%, Stabilize Voltage Of Photovoltaic Modules, String Inverter Optimizer, Solar Panel Power Booster

Features*Maximum flexibility: Compatible with most brands of photovoltaic modules, flexible design, maximize space utilization* Higher output: stabilize the voltage of photovoltaic modules and improve the power generation efficiency when photovoltaic modules are affected* Efficient : Solve the problems of photovoltaic flashlight, power loss, long string design, etc.*Intelligence: intelligent optimization and upgrading , which can improve the power generation efficiency of solar panels by 20-30%* Reliable performance: easy installation and SpecificationDC inputMax input power: 600Wvoltage range: 7~60VMPPT voltage range: 7~60VMax input current: 16AOver-current for PROTECTION: 18AOver-temperature for PROTECTION: 150СDC outputMax output current: 16AOutput voltage limit: 42VMax voltage: 1500V72-cell module in serial @1500V: 36 pcs72-cell module in serial @1100V: 26 pcs72-cell module in serial @1000V: 24 pcsEfficiencyPeak efficiency: 99.5%Power loss @5A: 0.9WPower loss @8A: 1.4WPower loss @12A: 2.9WPower loss @15A: 4.5WPower loss @20A: 7.2W for GENERAL dataDimensions (L×W×H): 103×105.3x21.3mmWeight: 0.65Kginput/output cable length: 500/1000mminput/output cable size: 4mm²(12AWG)/4mm²(12AWG)Terminals: Photovoltaic terminals (compatible)Rating: IP68/NEMA6Relative humidity: 0~100% RHOperating temperature range: -40~+65℃Cooling: Natural coolingPacking list:1*PV module optimizer

• 【Maximum flexibility】Compatible with most brands of photovoltaic modules, allowing for flexible design and maximizing space utilization.
• 【Higher output】Stabilizes the voltage of photovoltaic modules and improves power generation efficiency, ensuring optimal performance even under adverse conditions.
• 【Efficient operation】Solves common issues such as photovoltaic flashlight, power loss, and long string design, guaranteeing efficient and reliable operation.
• 【Intelligence】Intelligent optimization and upgrading increases solar panel power generation efficiency by 20-30%, making it a smart choice for sustainable energy solutions.
• 【Reliable performance】Easy installation and operation, delivering consistent and reliable performance throughout its lifespan.
