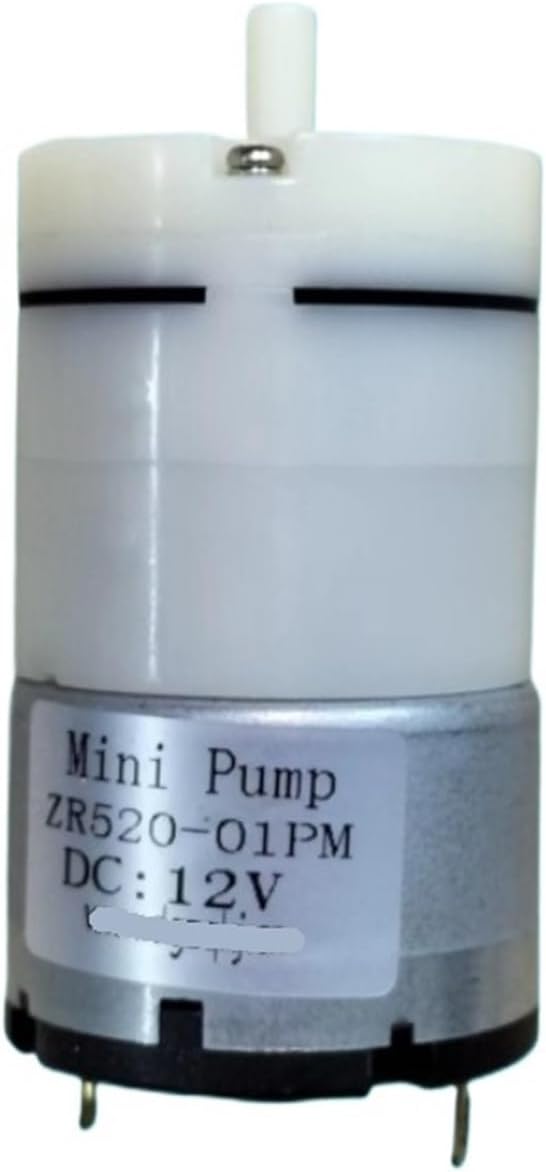

air Pump 3.5L Flow, Booster air Pump 520 Pump Mini air Pump

PumpsRated voltageDC 6.0VDC 12.0VDC 24.0Vvoltage rangeDC4.8V-7.2VDC10.8V-13.2VDC21.6V-26.4VLoad current<;550mA<;400mA<;200mAstrength<;3W<;3W<;3WPressure range0～900mmHg(0～120Kpa)flow3.5LPMnoiseThe pump body cushion is 5 cm thick sponge, placed 30 cm away from the noise meter, the rated voltage inflation pressure from 0 to 420 mmHg measured value is less than 60dBLifeThe vacuum is pumped for 10 seconds and the power is turned on for 5 seconds for one cycle. The test is repeated 30,000 times and the performance is poor within 15%.Working fluidAirrange of working temperature0℃-55℃Product Weight68 gProduct Specifications1. Application:This specification is applicable to ZR520-01PM DC 6.0V DC12.0V DC:24.0V.2. Test conditions:2-1 The environmental test standard is an ambient temperature of 20°C and a relative humidity of 65%RH. Under non-disputable circumstances, the test can be carried out at an ambient temperature of 5-45°C and a relative humidity of 30-80%RH.2-2 Position: Horizontal2-3 Load: Air positive pressure 900mmHg3. Function:3-1 Rated voltageDC 6.0VDC 12.0VDC 24VDC 24V3-2 Working voltageDC4.8V-7.2VDC10.8V-13.2VDC21.6V-26.4VDC21.6V-26.4V3-3 Load current<;550mA<;400mA<;200mA<;200mAIn a 500ml container, when the air pump is powered at rated voltage, the maximum current is less than the load current.3-4 Noise: The pump body cushion is 5 cm thick sponge, placed 30 cm away from the noise meter, the measured value is less than 60dB under the rated voltage and inflation pressure of 0 to 420mmHg3-5 flow rate: 3.5LPM3-6 Maximum pressure: The maximum pressure value of the booster from 0 to stop at rated voltage is greater than 900mmHg3-7 Operating temperature
