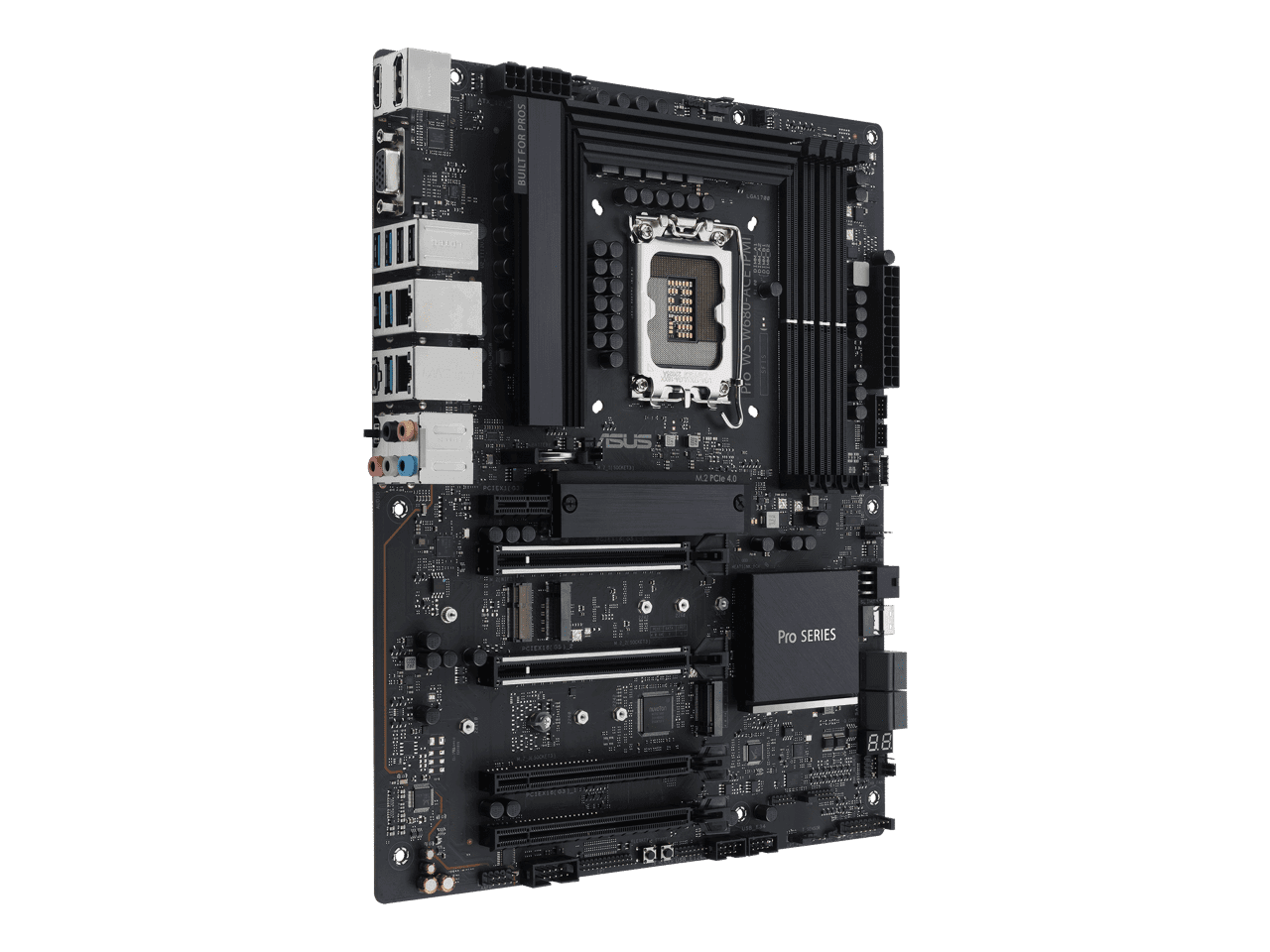

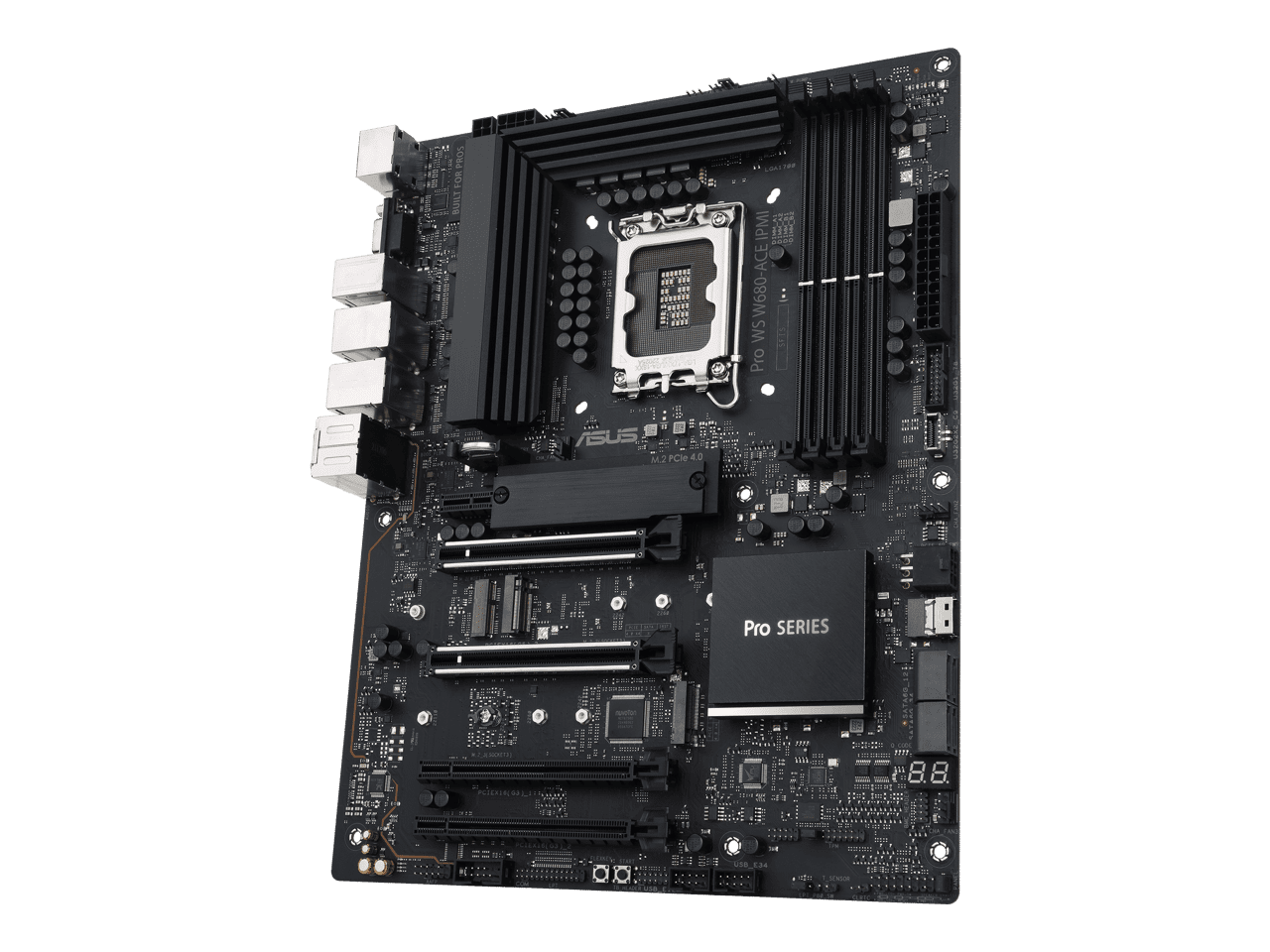

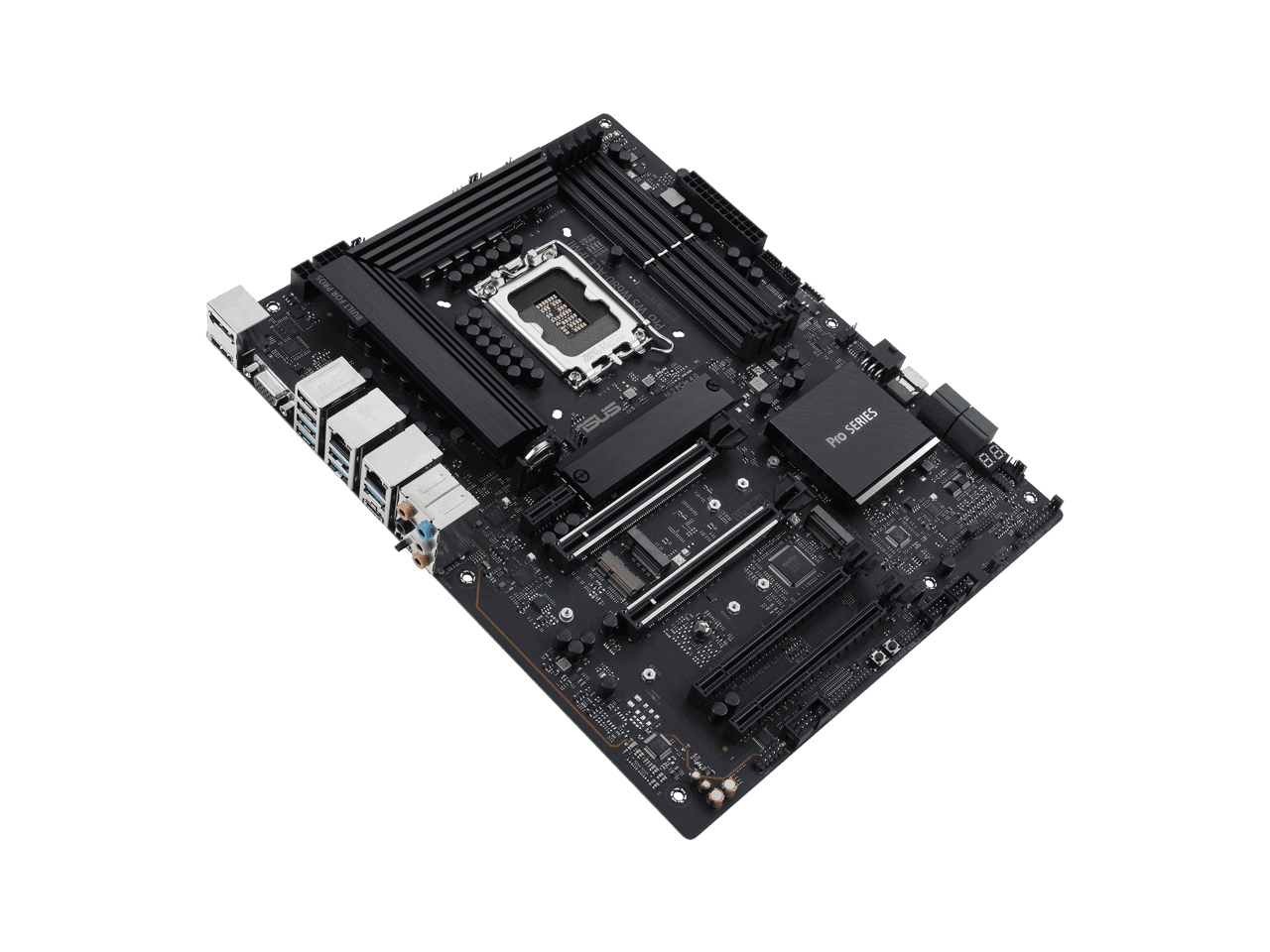

Asus Pro WS W680 ACE IPMI LGA-1700 DDR5 ATX Desktop Motherboard
Product details
| Management number | 230435062 | Release Date | 2026/06/18 | List Price | $159.96 | Model Number | 230435062 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
<b><u>Processor & Chipset</u><br></b><br><b>Chipset Manufacturer:</b> Intel<br><b>Chipset Model:</b> W680<br><b>Total Processor Supported:</b> 1<br><b>Processor Socket:</b> Socket LGA-1700<br><b>Processor Generation Supported:</b> 13th Gen, 12th Gen<br><b>Processor Supported:</b> Core, Pentium Gold, Celeron<br><br><b><u>Memory</u><br></b><br><b>Number of Memory Slots:</b> 4<br><b>Memory Form Factor:</b> DIMM, UDIMM<br><b>Maximum Memory Supported:</b> 128 GB<br><b>Memory Technology:</b> DDR5 SDRAM<br><br><b><u>I/O Controller</u><br></b><br><b>Controller Type:</b> Serial ATA/600<br><b>RAID Supported:</b> Yes<br><b>RAID Levels:</b> 0, 1, 5, 10<br><br><b><u>Audio</u><br></b><br><b>Audio Channels:</b> 7.1<br><br><b><u>Network & Communication</u><br></b><br><b>Gigabit Ethernet:</b> Yes<br><b>2.5Gigabit Ethernet:</b> Yes<br><br><b><u>I/O Expansions</u><br></b><br><b>Total Number of Expansion Slots:</b> 5<br><b>PCI Express Standard:</b> PCI Express 5.0, PCI Express 3.0<br><b>Total Number of PCI Express Slots:</b> 5<br><b>Number of PCI Express x1 Slots:</b> 1<br><b>Number of PCI Express x16 Slots:</b> 4<br><br><b><u>Interfaces/Ports</u><br></b><br><b>Total Number of USB Ports:</b> 8<br><b>Number of USB 3.2 Gen 1 Type-A Ports:</b> 4<br><b>Number of USB 3.2 Gen 2 Type-A Ports:</b> 1<br><b>Number of USB 3.2 Gen 2 Type-C Ports:</b> 1<br><b>VGA:</b> Yes<br><b>HDMI:</b> Yes<br><b>HDMI Version:</b> <li>2.1</li><br><b>DisplayPort:</b> Yes<br><b>Number of Network (RJ-45) Ports:</b> 2<br><b>Thunderbolt:</b> Yes<br><b>Number of Thunderbolt 4 Ports:</b> 1<br><br><b><u>Onboard Interfaces</u><br></b><br><b>Number of SATA Interfaces:</b> 8<br><b>Number of M.2 Interfaces:</b> 3<br><b>Total Number of Onboard USB Ports:</b> 7<br><b>Number of Onboard USB 2.0 Ports:</b> 4<br><br><b><u>Physical Characteristics</u><br></b><br><b>Form Factor:</b> ATX<br><b>Width:</b> 12"<br><b>Depth:</b> 9.6"
- PLACEHOLDER1
- PLACEHOLDER2
- PLACEHOLDER3
- PLACEHOLDER4
- PLACEHOLDER5
- PLACEHOLDER6
| Cpu socket type | LGA 1700 |
|---|---|
| Motherboard form factor | ATX |
| Memory configuration | DDR5 |
| Proc. brand | Asus |
| Max RAM | 128 GB |
| Inputs/Outputs | Outputs - HDMI, VGA, DisplayPort, Thunderbolt |
| Brand | ASUS |
| Number of ports | 11 |
| Input/output quantity | 29 |
| Model name | WS W680-ACE IPMI |
| Accessories | IPMI Expansion card |
| Has written warranty | No |
| Height | 2 in |
