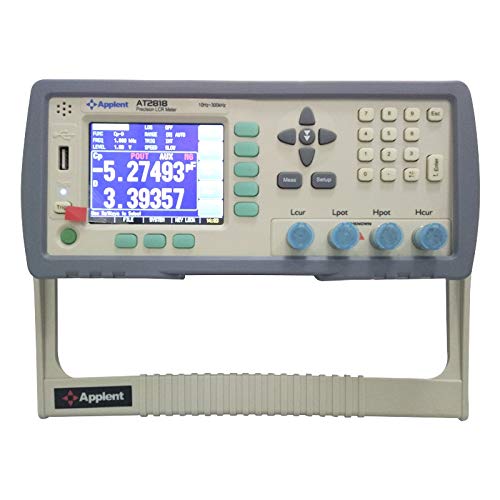

AT2818 Precision LCR Meter Capacitance Tester Component Testing Instruments

AT2818 adopts TFT true color LCD display and English operation interface (Chinese also available). AT2818 (has been upgraded into continuous frequency with the resolution of 0.001Hz. Four parameters can be measured simultaneously by AT2818. Any parameters can be set arbitrarily. Both main & sub parameters can be displayed in 6 dgt after the improvement. AT2818 can not only scan 10 kinds of frequency or voltage level, but also correct three groups of user frequency so as to improve the accuracy. The upgrade version adopts big font. AT2818 Precision Digital LCR Meter ParametersCs-Rs,Cs-D,Cp-Rp,Cp-D,Lp-Rp,Lp-Q,Ls-Rs,Ls-Q,Rs-Q,R-X,Z-θrad,Z-θdeg Monitor ParametersZ, D, Q, θr, θd, R, X, G, B, Y, Vac, Iac, Δ, Δ% Accuracy0.05% ± 5 dgt Frequency10Hz - 300kHz (continuous frequency, frequency resolution 0.001Hz) Display RangeL: 0.00001H-999999H C: 0.00001pF - 999999F R,Z: 0.00001 - 99.9999M D, 0.00001 – 9.99999 Q: 0.00001 – 99999.9 %: -999999% - 999999% (deg): -179.999 -179.999 (rad):-3.14159 – 3.14159 Source Resistance30Ω, 50Ω, 100Ω RangeAutomatic, Manual, and nominal, 9 ranges Display Max6 digital, principle parameter: 999999; sub parameter:999999; monitor parameter: 999999 Signal Level0.01V - 2.00V (10mV Step) Speed30t/s, 10t/s, 6 t/s, 3 t/s 1-256 times average is available Comparator14-bin sorting, 10-bin GD, 1-bin NG, 1-bin AUX, 2-bin principle parameter NG; Count Function: Max - 999999 List Test10 group frequency and level scanning measurement AdjustmentOpen & Short circuit sweep frequency correction, 3 point frequency correction and load calibration. Files10 group files to save user's setting, 1 group to save system data real-time InterfaceRS232C, ExHandler interface, standard configuration USB Disc interface (article 10000 data) OthersLCR Automatic selection, keypad lock, SCPI instruction set, TFT true color LCD display GENERAL FEATURES Power SupplyVoltage: 90V AC - 250V AC Frequency: 50Hz - 60Hz Max Power

• Bench type LCR meter, capacitance meter, resistance meter, inductance meter
