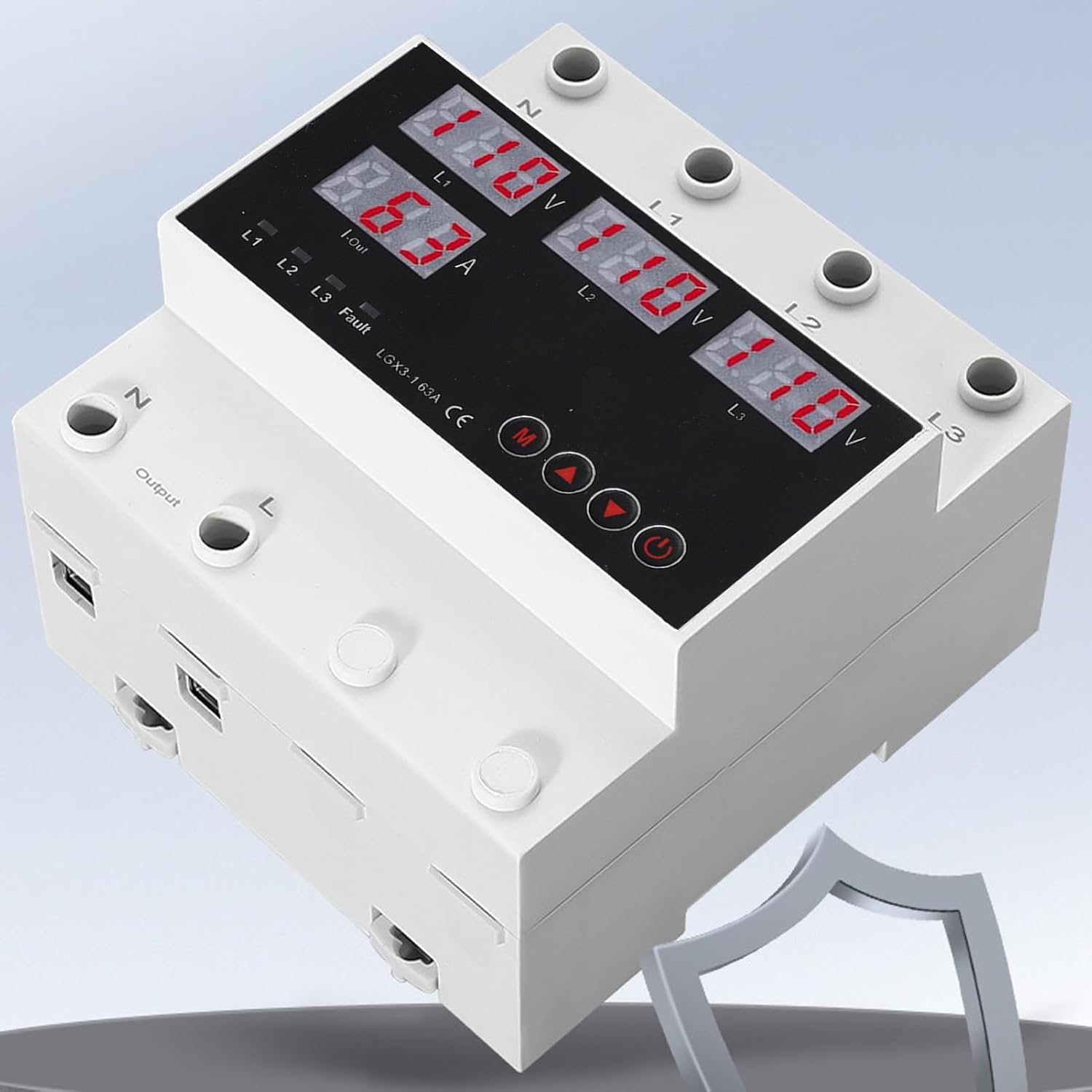

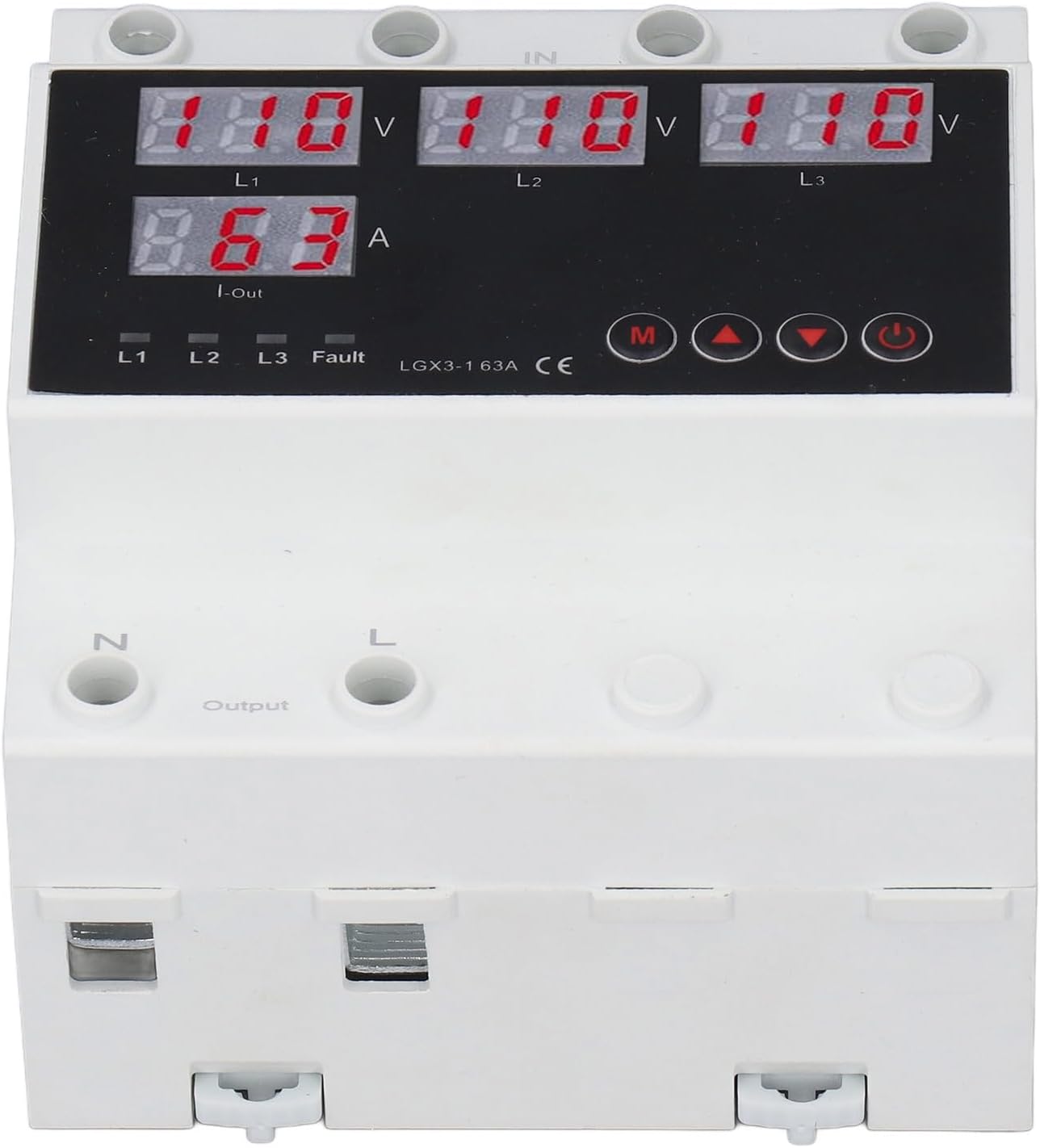

Automatic Transfer Switch ATS 63A, LED Display, Adjustable Voltage Protector for Generator, Inverter, with Smooth Switching, Widely Used in Power Systems (AC110V)

Specification: Item Type: Automatic Transfer Switch Model: CHLT-GX2 Material: Flame retardant PC Power Terminals: N, L1, L2, L3 Auto Reclosing Delay(Ton): 1-600s Return Priority Stage Delay: 1-600s Switch Delay To Reserve Phase: Overvoltage Trip Delay: 0.1s; ≥350V: 0.02s Undervoltage Trip Delay: 0.1s; ≥350V: 0.02s Rated Operating Current: 63A Maximum Operating Current: 80A Pollution Degree: 3 Altitude: ≤2000m Operating Temperature: -25℃~+50℃ Relative Humidity: ≤50% at 40℃(non condensing) Wire Size: 0.5mm²-1mm² Installation: 35mm standard mounting rail How to Use: Use according to the user manual. Package List: 1 x Automatic Transfer Switch 1 x User Manual

• [Customizable Settings] This three-phase switch allows you to prioritize between mains power, generator, and inverter. you can set voltage thresholds for automatic switching in cases of under or over voltage. the switch speed is adjustable within a range of 1s to 600s, with a default of 30s.
• [Versatile Applications] The ats is ideal for various settings including commercial and industrial buildings, medical facilities, data centers, and communication base stations, where a power supply is essential for seamless operations.
• [Premium Materials] Constructed of high fireproof pc material, this switch is to use, , and sensitive. it ensures accurate measurement with minimal heat generation, making it a choice for continuous and stable power supply.
• [Adjustable Parameters] The transfer time, reset time, over/under voltage , and overcurrent parameters are all customizable within specified ranges to meet your specific needs.
• [Efficient Power Transfer] The ats ensures uninterrupted power supply by automatically transferring the load from the main power supply to the standby power supply in case of failure or abnormal voltage, with priority set at l1>l2>l3. smooth switching between power sources prevents fluctuations or interference.
