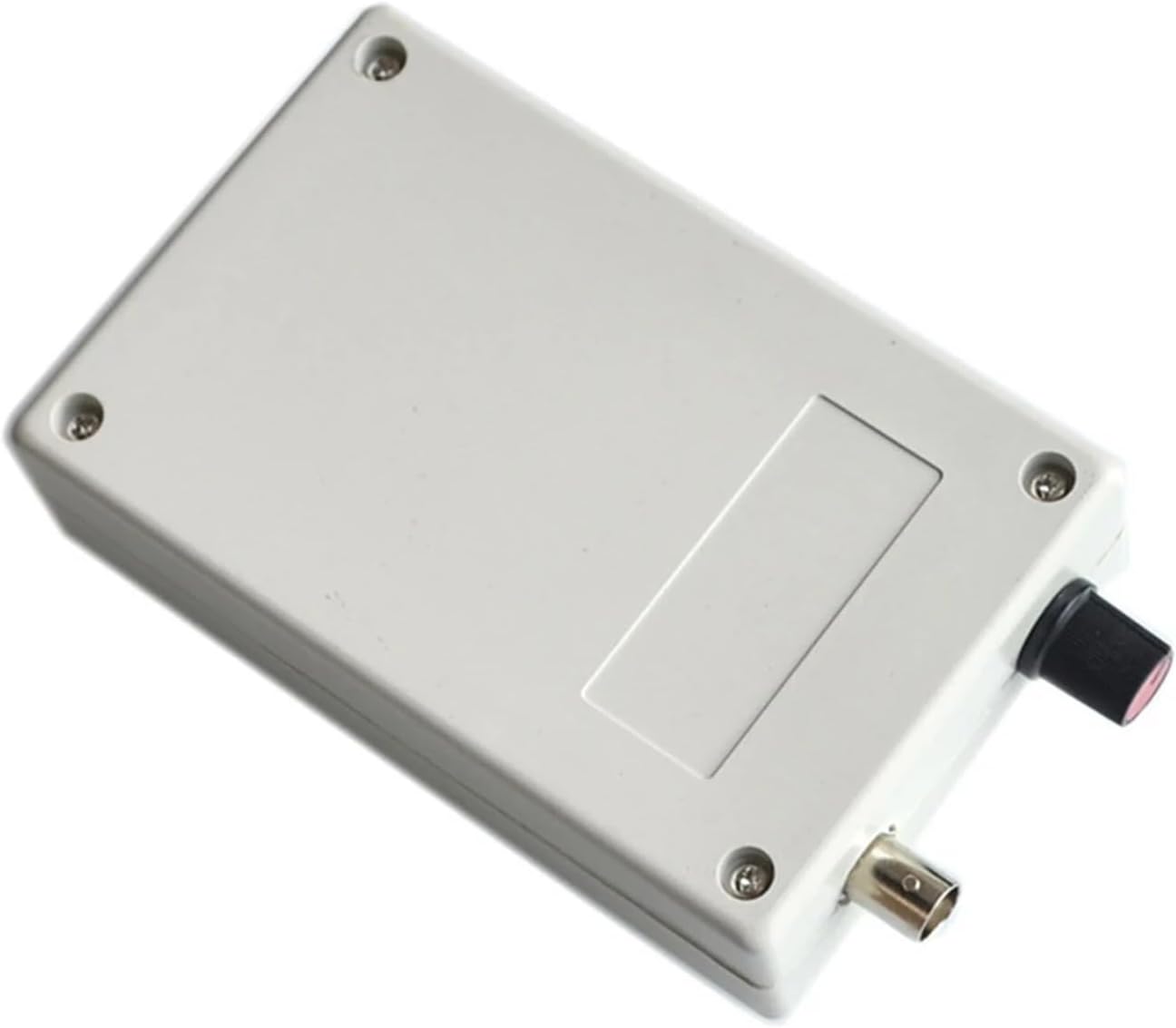

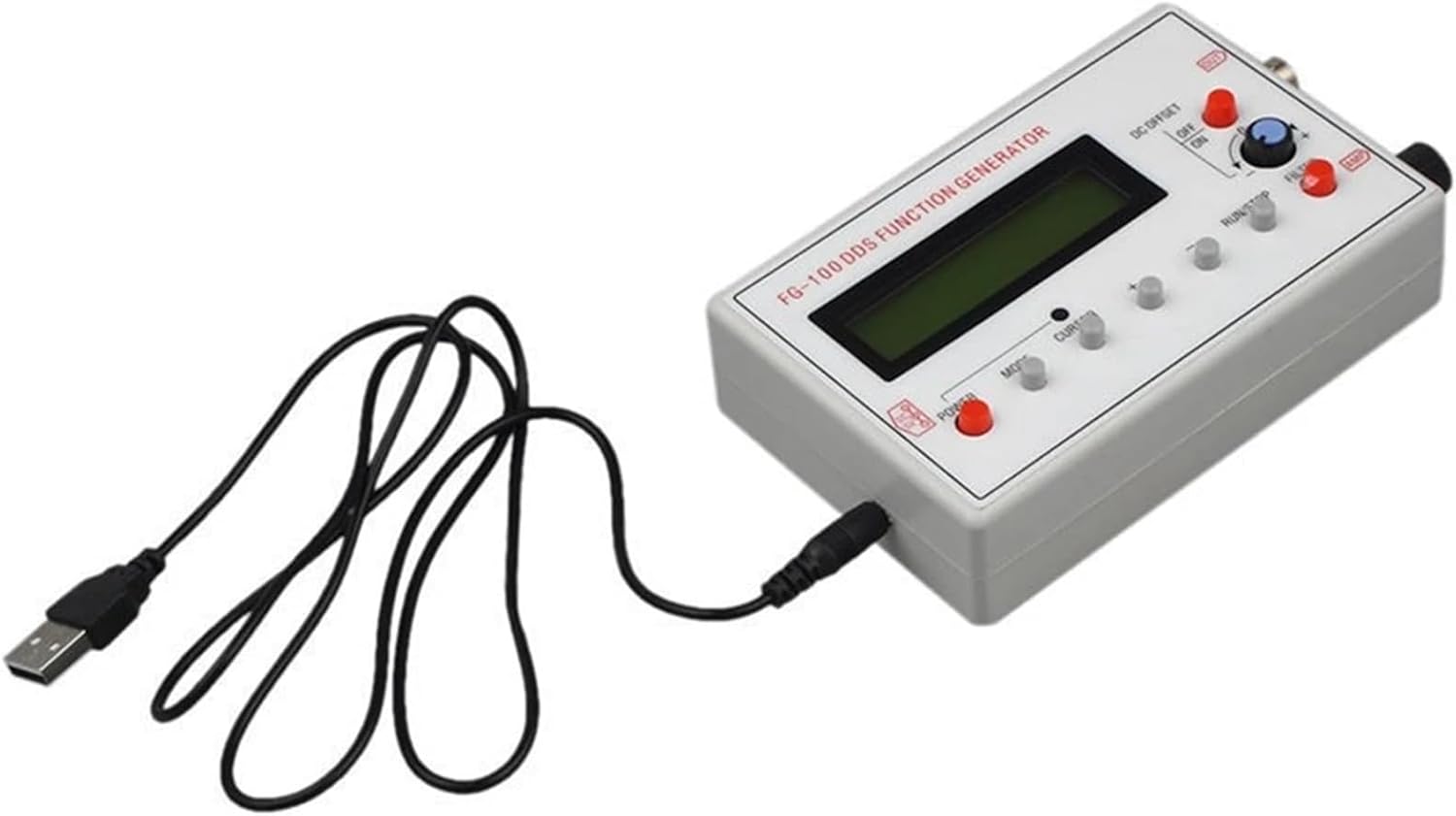

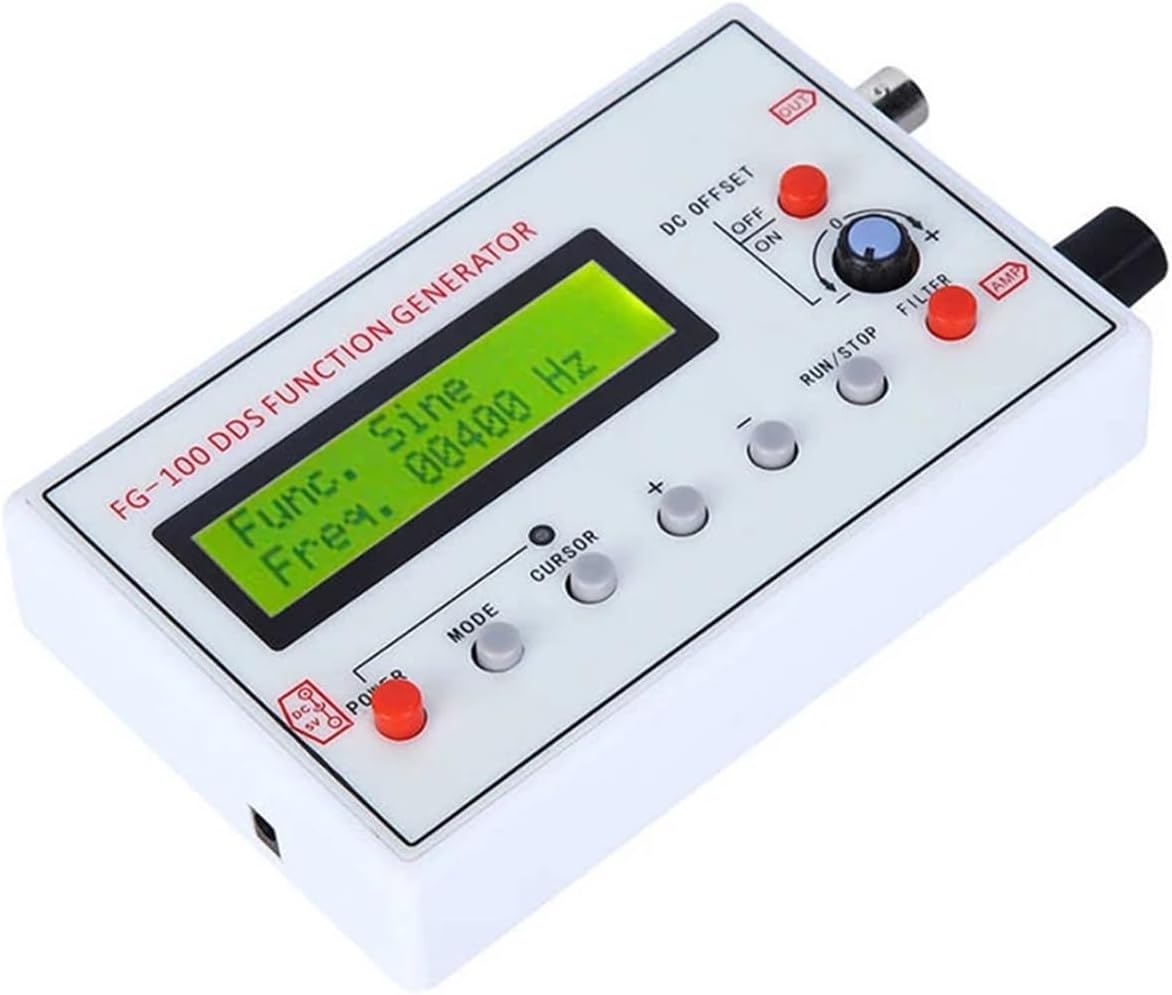

COKYIS FG-100 DDS Function Signal Generator Frequency Counter 1Hz - 500KHz Signal Source Module Sine+Square+Triangle+Sawtooth Waveform

Power Transmission ProductsProduct DescriptionSmall size, multiple functions, simple operation, easy to carry.With an oscilloscope, which can be used in electronic circuit experiment and debugging, the frequencDue to the good precision of DDS and frequency stability, is also very suitable for oscilloscope sweCOLOR:whiteMaterial:metalWith an oscilloscope, which can be used in electronic circuit experiment and debugging, the frequency characteristics of audio amplifier and pulse response of test and measurement.Due to the good precision of DDS and frequency stability, is also very suitable for oscilloscope sweep time calibration factor. Square wave output also suit for oscilloscope attenuator and probe pulse adjustment, etcThe main output waveform : sine wave and square-wave, Triangular wave, sawtooth wave.Maximum output amplitude : +/- 10Vpp (no-load)Output impedance : 50Ohm+/-10%Dc bias : +/- 10V (no-load)Display : LCD1602Material:metalResolution : 1 HzPower supply : DC 3. 5-10VOutput frequency range :Sine wave : 1Hz-500KHzSquare-wave : 1 Hz - 20kHz (the valid range)Triangular wave : 1 Hz - 20KHz (the valid range)Sawtooth wave : 1 Hz - 20kHz (the valid range)Package includes:1 x FG-100 DDS Function Signal Generator1 x USB power adapter cableNote:Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
