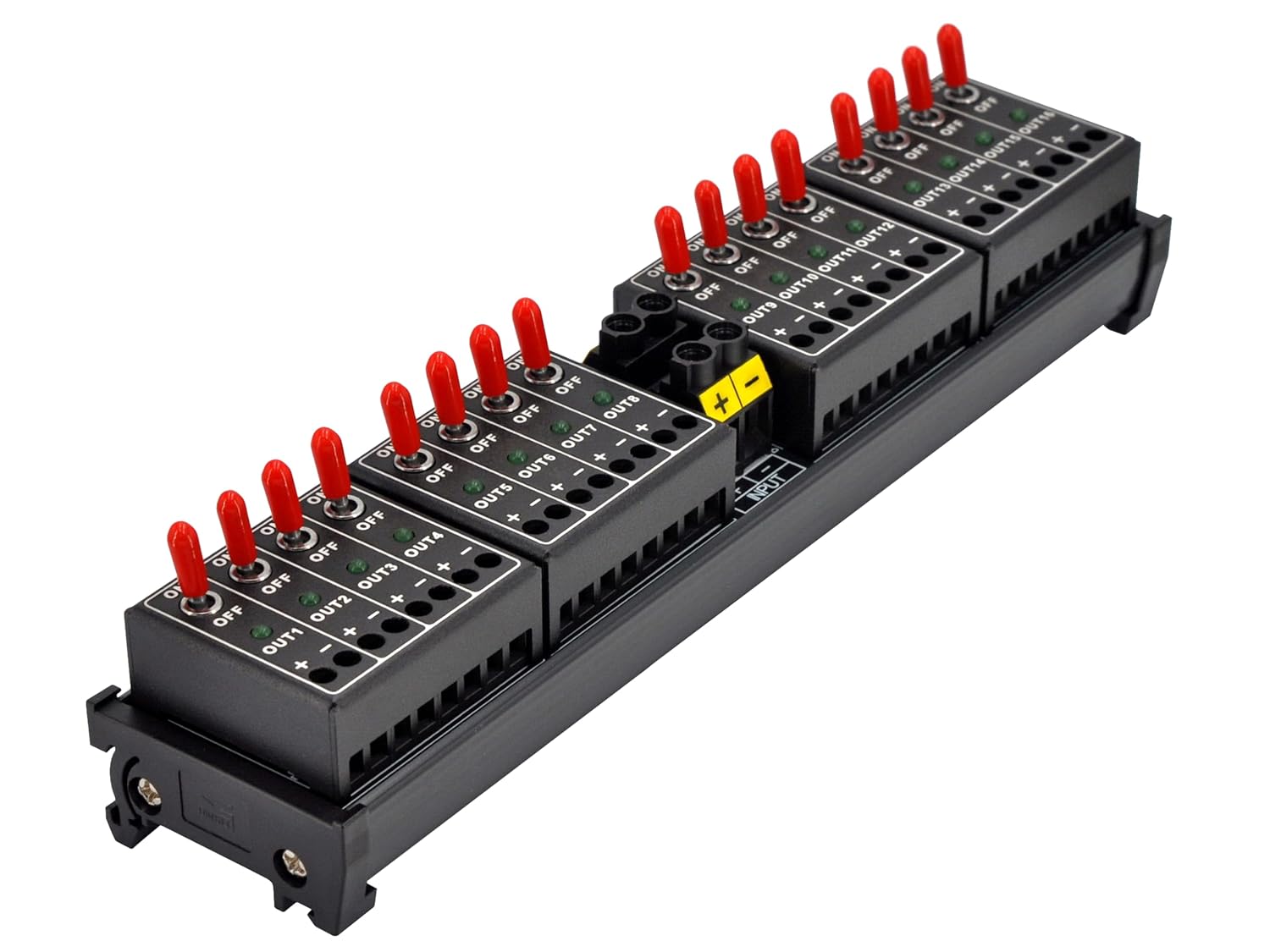

DC 16 Channel Toggle Switch Power Distribution Module, DIN Rail Mount
$90.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.bosugroup.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$90.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.bosugroup.com
Free 30-day returns Details
Product details
| Management number | 209942786 | Release Date | 2026/04/02 | List Price | $36.00 | Model Number | 209942786 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Working voltage DC 3 to 32V. Maximum input current 30 Amps. 16 Channels output, each channel maximum output current 5 Amps (all channel total maximum output 30 Amps).
- Toggle switch ON/OFF power output for each channel. With switch power ON LED indication function.
- Input terminals: pitch 7.62mm/0.3", rated current 30 Amps for per position, wire size 26-10AWG / 4.0mm square, stripping length 8mm, Metric M3 slotted screw. Support power supply expansion connect to other modules.
- Output terminals: pitch 5.0mm/0.197", rated current 5 Amps for per channel, wire size 26-12AWG / 2.5mm square, stripping length 7mm, Metric M3 slotted screw.
- High quality fireproof nylon material DIN rail mount carrier, can support width 35mm rail. Aluminum top cover.
- UL CE certified DIN rail mount carrier. UL 94-V0 certified FR-4 fiberglass PCB. UL CE CQC certified terminal blocks.
- Operating Temperature: -20 to 60 degrees Celsius.
