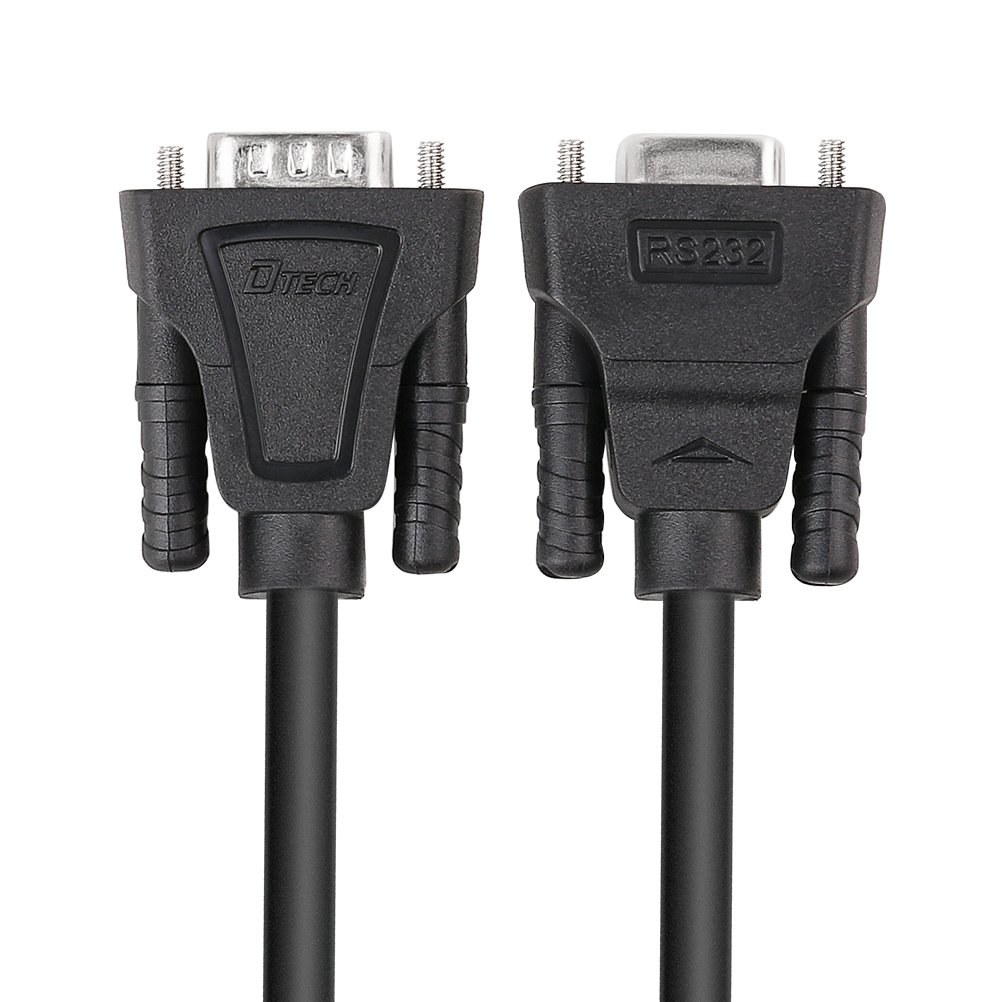

DTECH 2m DB9 RS232 Serial Cable Male to Female Computer Monitor Cable 9 Pin Null Modem Extension Cord for PC Data Communication（6feet,Black

Need a three wire null modem serial extension cable (TX, RX and GND) that is long enough to control your legacy equipment, so you can program a outdoor digital sign from the comfort of indoor office? This 6ft 9 pin male to female serial adapter (cross wired between TX and RX line) enables you to extend original serial to serial cord and move the device to a far corner where you need it to reach. 9 pin serial cable male to female is with gold plated pins for superior corrosion resistance ensuring a solid connection. For RS232 devices below (partial): Telescope vinyl cutting/ sewing machine GPS radio transceiver subwoofer/speaker set weather station controller to camera Note: 1.Shielded with standard Foil-Al layer shielding as most cables do, it fits for most of jobs. 2.It’s not a 15 pin VGA cable that connects monitor to laptop, is only for RS 232 communication port to interface one system to another system. Specifications: Usage: for extending a 9 pin serial male to male cable, or connect it to an old serial port device along with a serial to USB converter Connectors: DB9 to DB9 (Male-Female) Cable Diameter: 6mm Cord Length: 6 ft (2 meters) What’s Included: 1 x RS-232C Serial Male to Female TX/RX crosslinked Cable (Black) 1 x Manual

• Simple 6ft null modem extension cable (3 wire type and no hardware handshaking) extends a COM port connection between computer and some old device with RS-232 compatible
• Wired as a 9 pin serial cable male to female port cord that 2-3 line are crosslinked (only TX/RX data and signal ground wires connected); standard shielded with AL foil
• DB9 m/f adapter extender equipped with screws on each end to ensure an easy and solid connection for stable data communication
• The wires inside are of 30AWG gauge and easy to solder to, and they connect to the pins in the order of the standard wire color code
• 6 feet long RS232C cable for hooking up RS232C equipment like scanner, Modem, printer, plotter, camera, barcode / embroidery machine, touchscreen, microcontroller, factory test equipment
