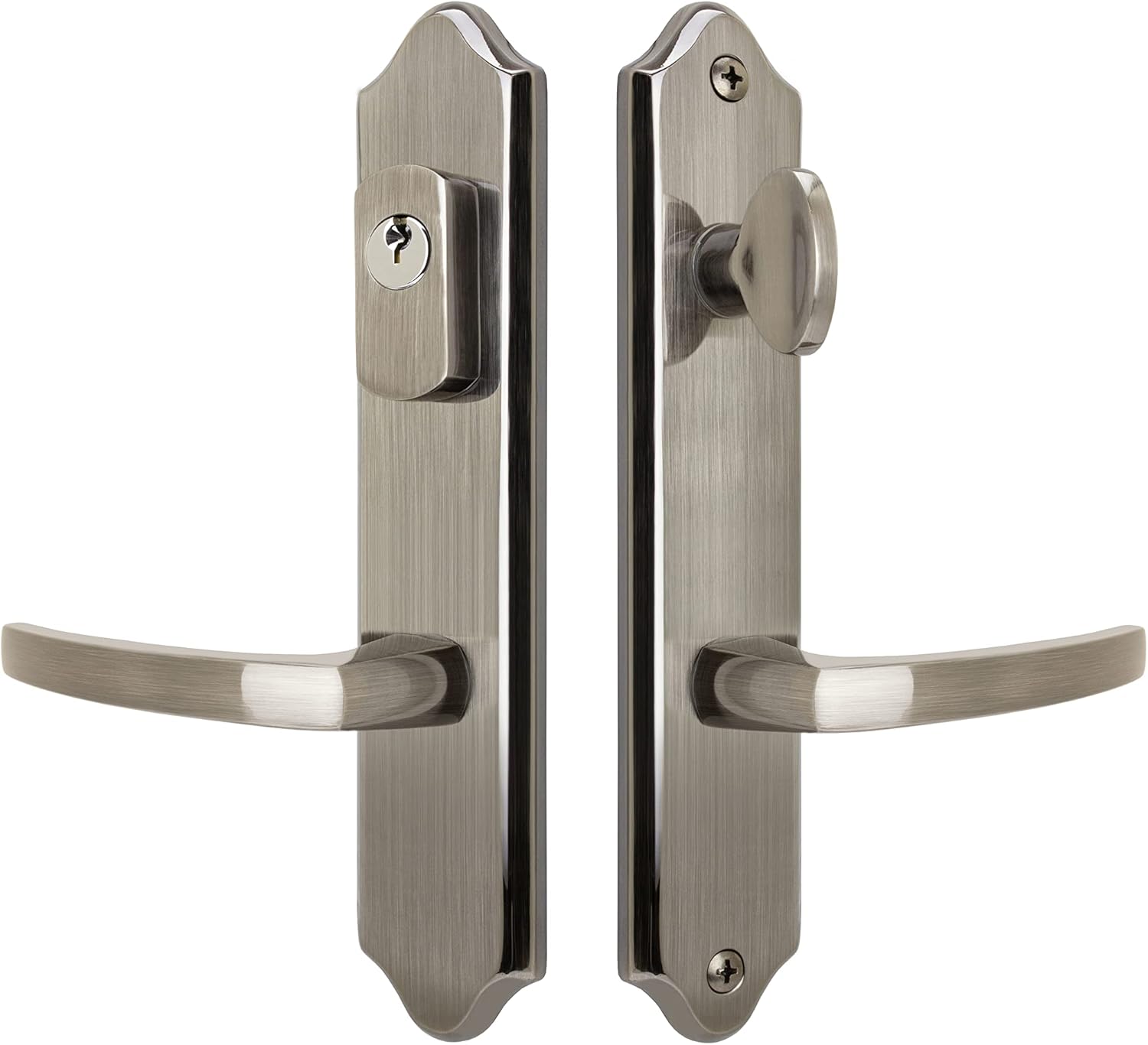

FPL Tuscany Solid Brass Active Trim Only Lever Set for Multipoint Lock, SC1 Keyway, Satin Chrome

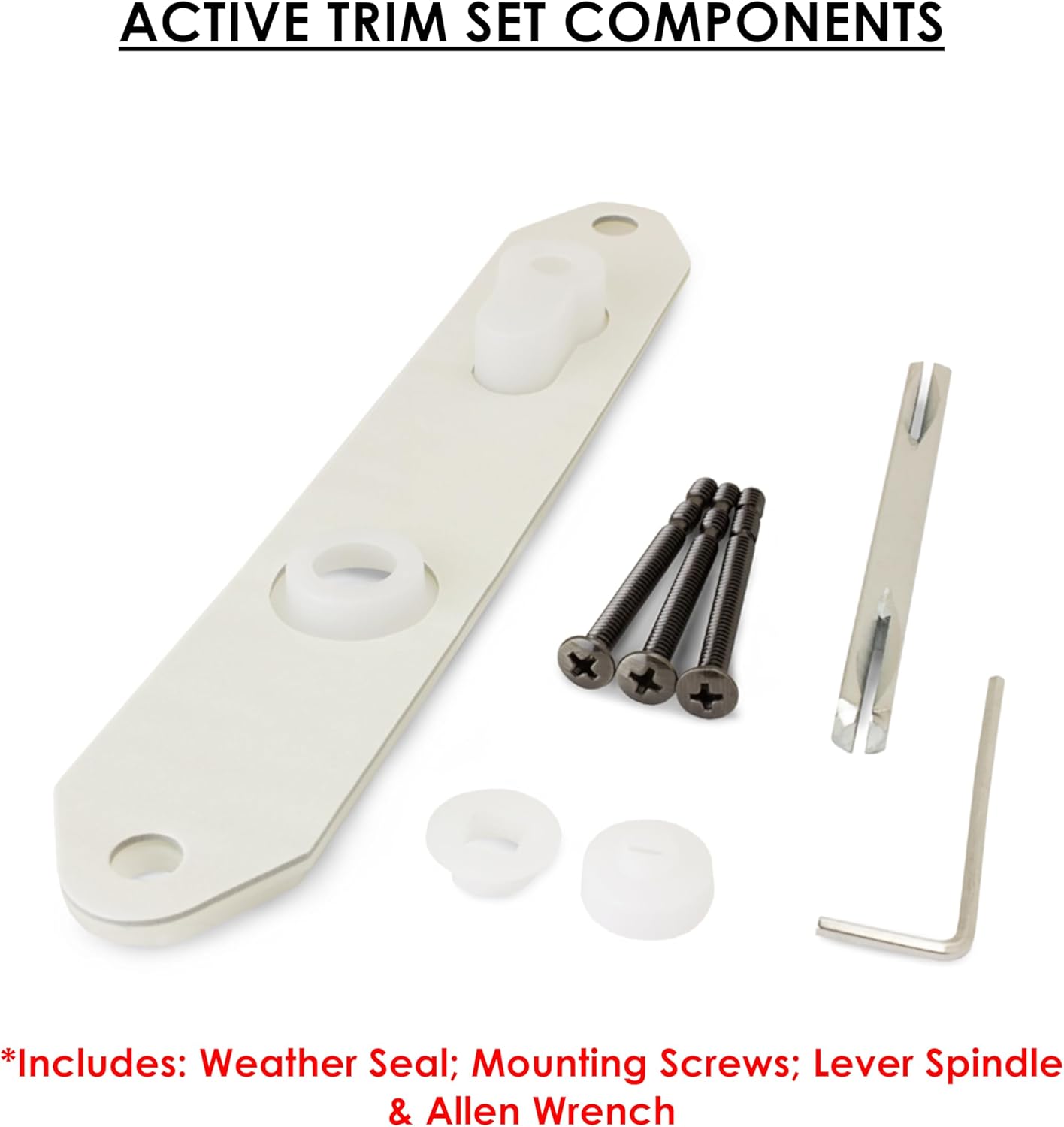

Tuscany by FPL- Solid Brass Active Trim Only Lever Set for Multipoint Locks - SC1 KeywayCrafted in the tradition of fine European door hardware, the Tuscany solid brass lever set features slender escutcheon plates in an appealing, classic design. Its refined levers offer smooth lines and a fashionable profile that underscores the high quality of the lever set. Solid brass construction, secure through-door mounting, solid lever spindle, and nylon washers insure durability and provide smooth, solid, and long-lasting operation. Many beautiful finishes, including unique distressed finishes, are available to satisfy even the most discriminating tastes. Experience the difference high-quality door hardware can bring to your home!Technical Details:For use with multipoint locks by: Andersen E-Series, Atrium, Biltbest, Eagle, FPL (#7003 series), G-U, Hurd (Energy Saver), KML by Andersen, Marvin Integrity, Paddock Lockmaster, and Superior. Also replaces trim sets made by: Baldwin (door configuration #5) and Emtek (door configuration #1 and #2). Lever set can be installed with the lever above or below the key cylinder. Please see lever placement and dimension photos to ensure fitment. 92mm (3-5/8”) C-T-C lever to key cylinder distance. 178mm (7-11/16”) C-T-C mounting hole distance. 8mm x 105mm square spindle. Rekeyable SC1 keyway cylinder. Please contact us if you wish to have the cylinder keyed to your existing Schlage key. Fits standard 1-3/4” exterior doors (hardware kits for 2-1/4” thick doors are available). Matching inactive trim, entry, privacy, passage, and dummy sets are available enabling you to use this hardware style throughout your home. Search for: FPL + Tuscany + function, for example “FPL Tuscany passage”.

• Solid brass active trim set for use with multipoint door hardware by many manufacturers- see below
• Lever can be installed above or below key cylinder- see lever placement photo

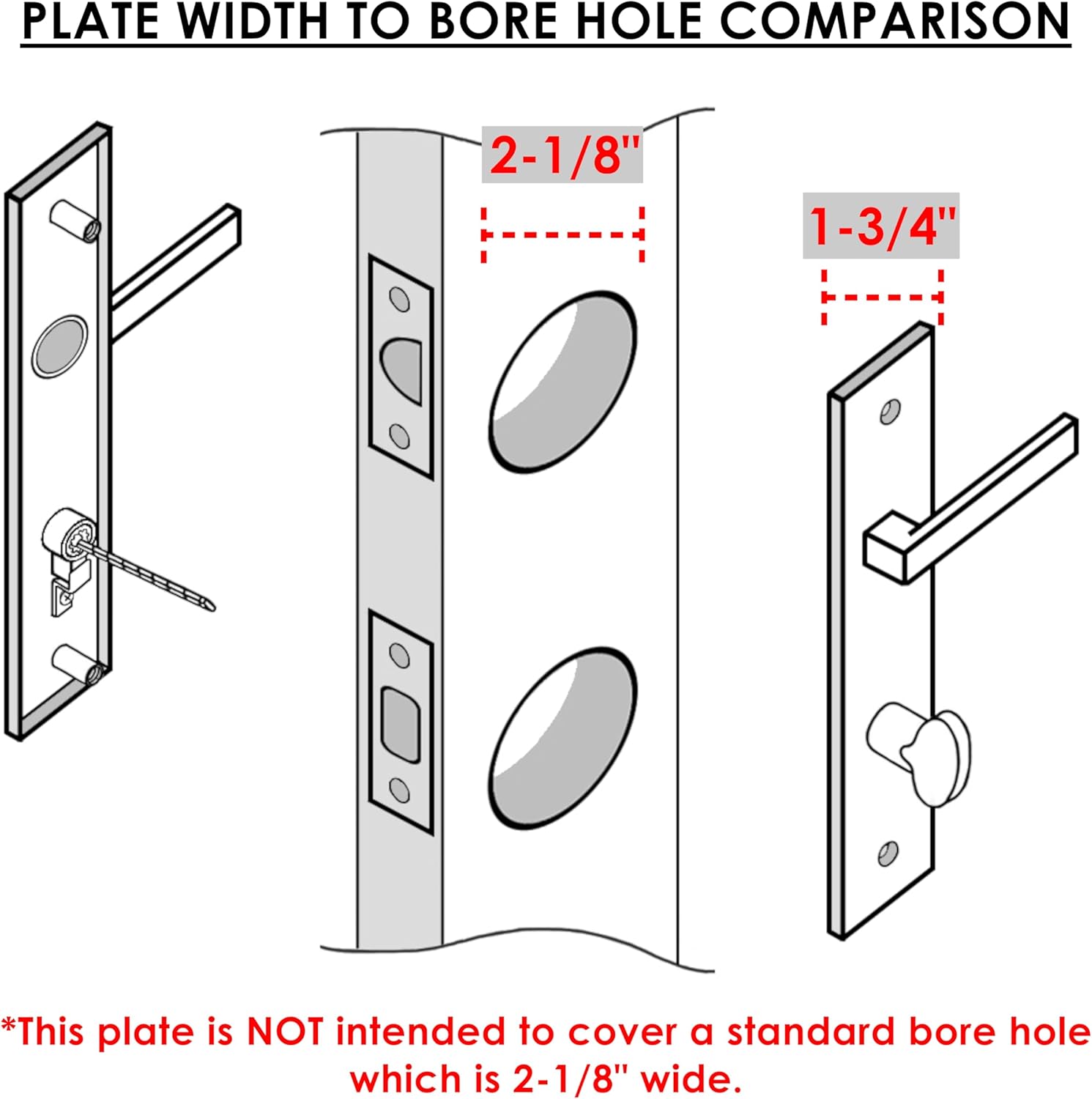

• 92mm (3-5/8”) C-T-C lever to key cylinder distance - 178mm (7-11/16”) C-T-C mounting hole distance
• Rekeyable SC1 keyway cylinder - Reversible handing – For 1-3/4” door thickness
• Also need American Cylinder Adapter (part #7000ACA) if replacing trim using a Euro profile cylinder
