HT001404NPW01, Electric Motor Three Phase Rotor Squirrel CAGE 1.5Hp 1750 RPM 4P 143/5T 208-230/460//190-220/380-415 WCF2 60Hz F-1/B3R(D) IP55 NEMA PREMIUMEFFICIENCY RO
Product details
| Management number | 221691390 | Release Date | 2026/05/03 | List Price | $176.03 | Model Number | 221691390 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

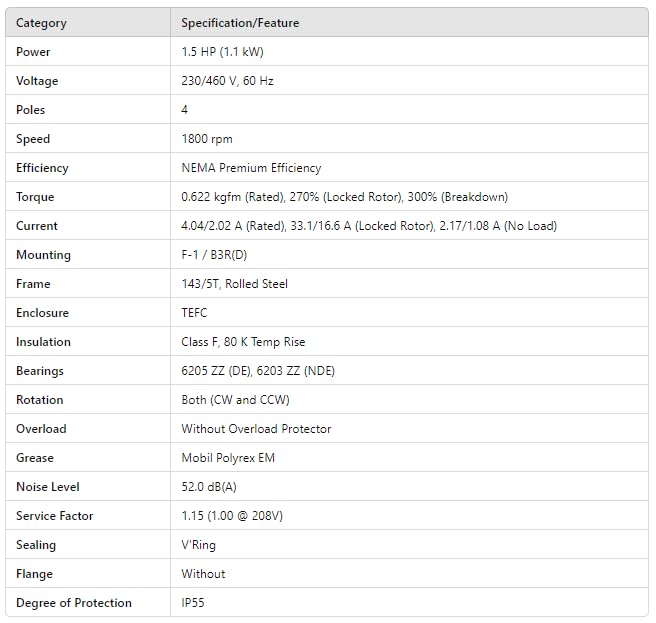

HT001404NPW01, ELECTRIC MOTOR THREE PHASE ROTOR SQUIRREL CAGE 1.5Hp 1750 Rpm 4P 143/5T 208-230/460//190-220/380-415 WCF2 60Hz F-1/B3R(D) IP55 NEMA PREMIUMEFFICIENCY RO Category Specification/Feature Power 1.5 HP (1.1 kW) Voltage 230/460 V, 60 Hz Poles 4 Speed 1800 rpm Efficiency NEMA Premium Efficiency Torque 0.622 kgfm (Rated), 270% (Locked Rotor), 300% (Breakdown) Current 4.04/2.02 A (Rated), 33.1/16.6 A (Locked Rotor), 2.17/1.08 A (No Load) Mounting F-1 / B3R(D) Frame 143/5T, Rolled Steel Enclosure TEFC Insulation Class F, 80 K Temp Rise Bearings 6205 ZZ (DE), 6203 ZZ (NDE) Rotation Both (CW and CCW) Overload Without Overload Protector Grease Mobil Polyrex EM Noise Level 52.0 dB(A) Service Factor 1.15 (1.00 @ 208V) Sealing V'Ring Flange Without Degree of Protection IP55
- Power: 1.5 HP (1.1 kW) Voltage: 230/460 V, 60 Hz
- Speed: 1800 rpm
- Bearings: 6205 ZZ (DE), 6203 ZZ (NDE) Mounting: Foot-mounted F-1 Flange: Without
- Rotation: Both (CW and CCW)
- Current: 4.04/2.02 A (Rated), 33.1/16.6 A (Locked Rotor), 2.17/1.08 A (No Load) Torque: 0.622 kgfm (Rated), 270% (Locked Rotor), 300% (Breakdown)
| UPC | 760944704852 |
|---|---|
| Brand Name | E-Motor Nations |
| Item Weight | 17191.15 Grams |
| Part Number | 760944704852 |
| Manufacturer | E-Motor Nations |
| Warranty Description | Manufacturer warranty for 1 year from date of purchase. |
