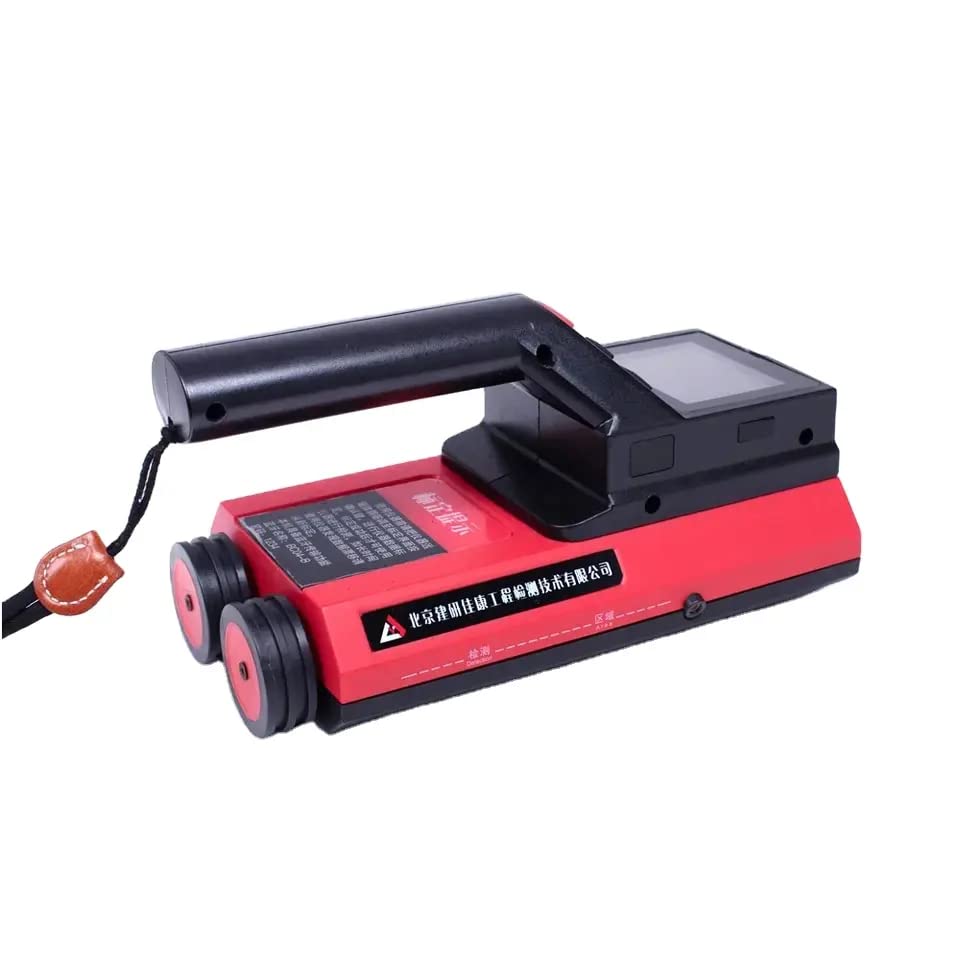

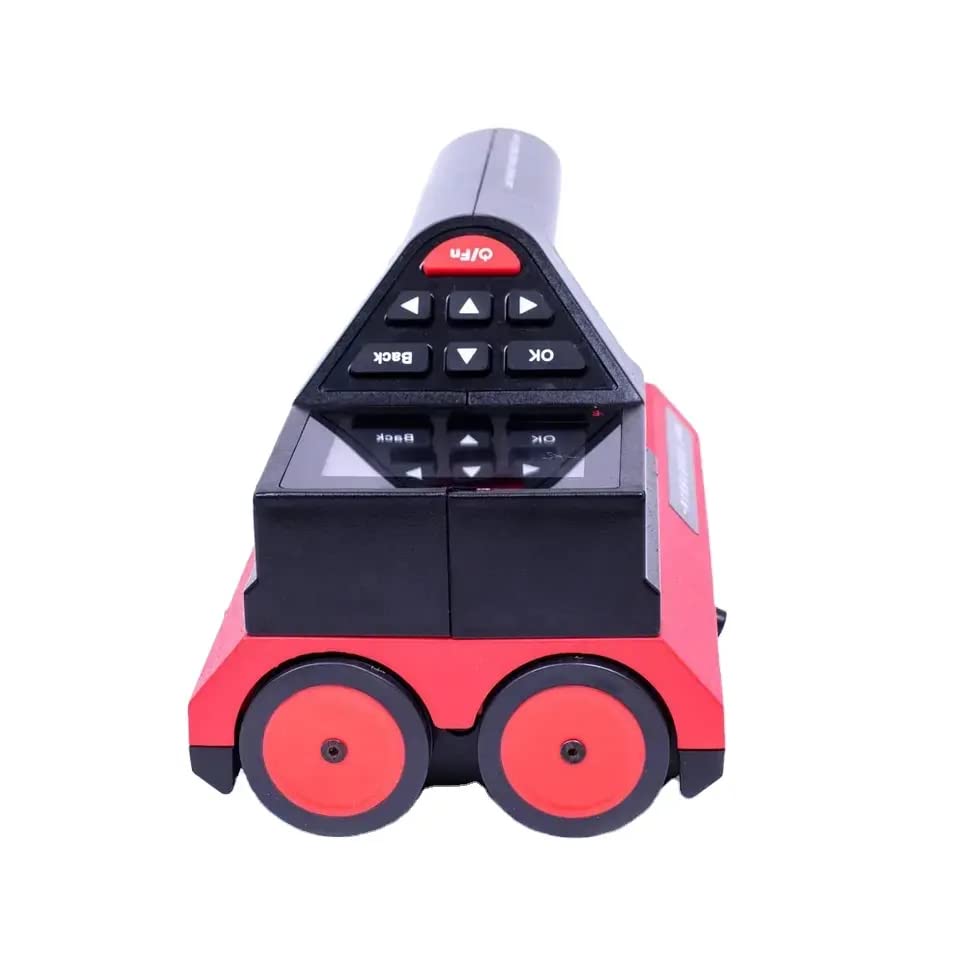

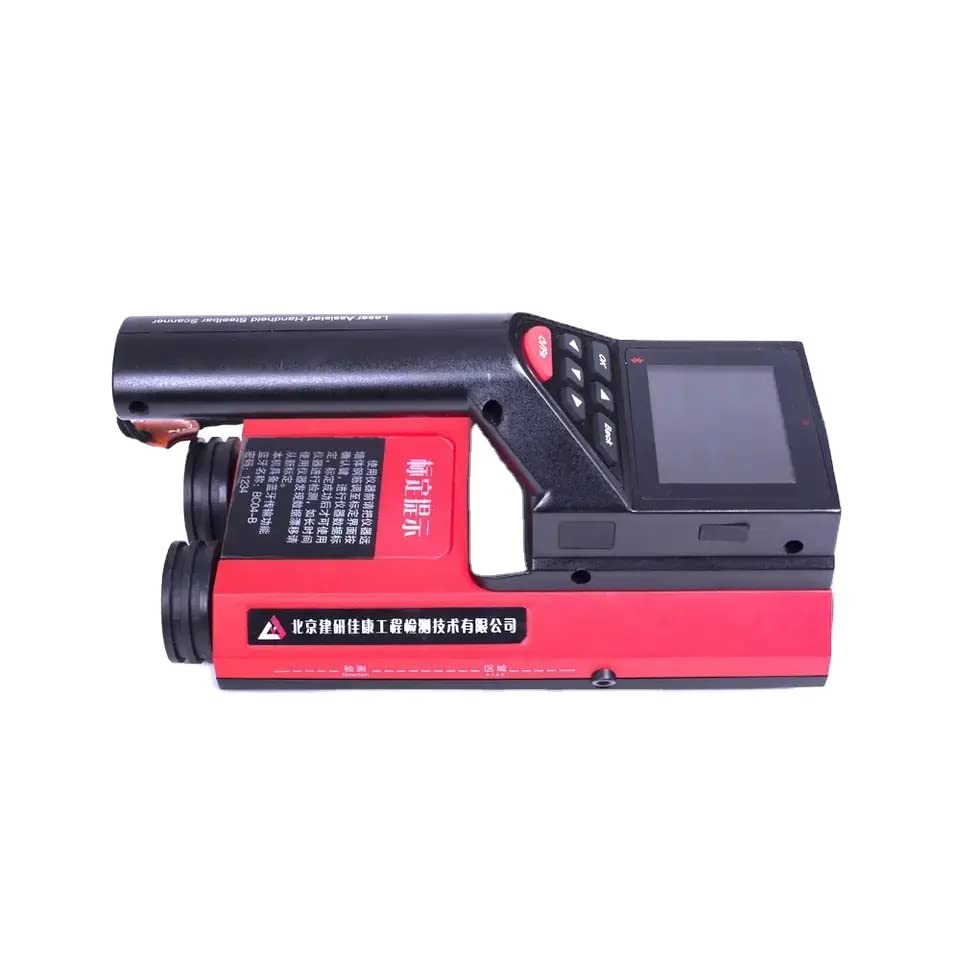

JY-8SK Laser Assisted Steel Bar Scanner Rebar Scanner Rebar Detector Concrete Rebar Locator Scanner JY8SK

Hardware features of the instrument: -High resolution color LCD screen (2.8-inch, 320x240-pixel, 65536-color) -Integrated host, testing unit integrated with the host, no need for signal line -Built-in large-capacity lithium battery, the maximum working time can be up to 30 hours -Small dimension: 22CM × 12CM × 11.8CM- Instrument host weight: 0.61Kg- Laser indicating positioning, convenient to determine the position of steel bar Work environment requirements:Ambient temperature: -10 ℃ ~ 40 ℃Relative humidity: <90%RHElectromagnetic interference: no strong alternating electromagnetic field Storage environment requirements: Make sure the instrument is dry before storage Ambient temperature: -20 ℃ ~ 50 ℃ Relative humidity: <90%RHThe main components of JY-8SK Laser Assisted Steel Bar scanner are:1) Instrument host2) Charger3) Data transfer line4) Software CD-ROM

• The testing results show the thickness of the protective layer, the distance between steel bars and the number of steel bars.Waveform testing can be carried out to facilitate the analysis of steel bar situation.
• The position of the steel bar and the middle position of the two bars can be accurately positioned by the aiming frame.The calibration value is stored automatically, and the calibration is avoided before each test. In special cases, the calibration can be carried out again.
• Thickness testing, section scanning and grid scanning are all boundless, so they can be scanned in a wide range.
• Waveform scan can complete a range of 5.5 meters or more.
• Built-in large capacity memory chip, can store more than 2, 000 components or 170,000 testing points; convenient in the field for data storage, view, deletion.
