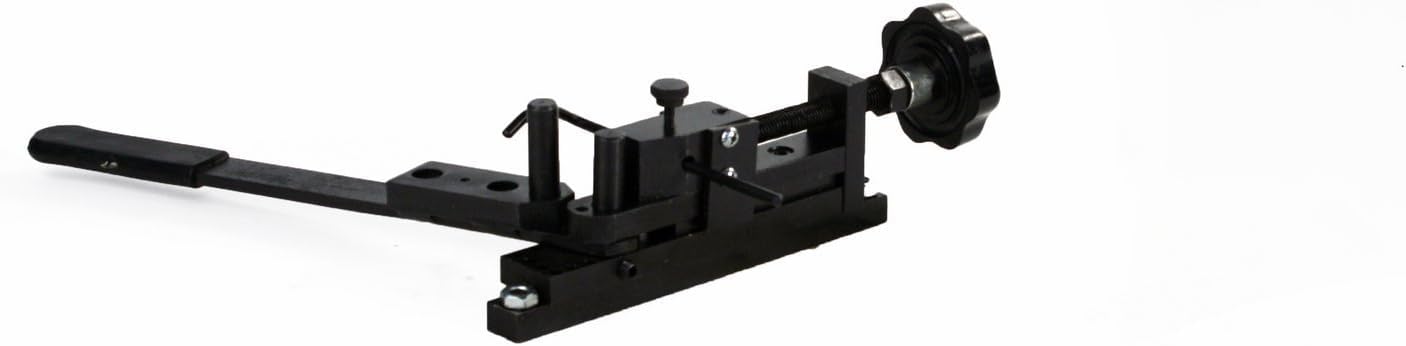

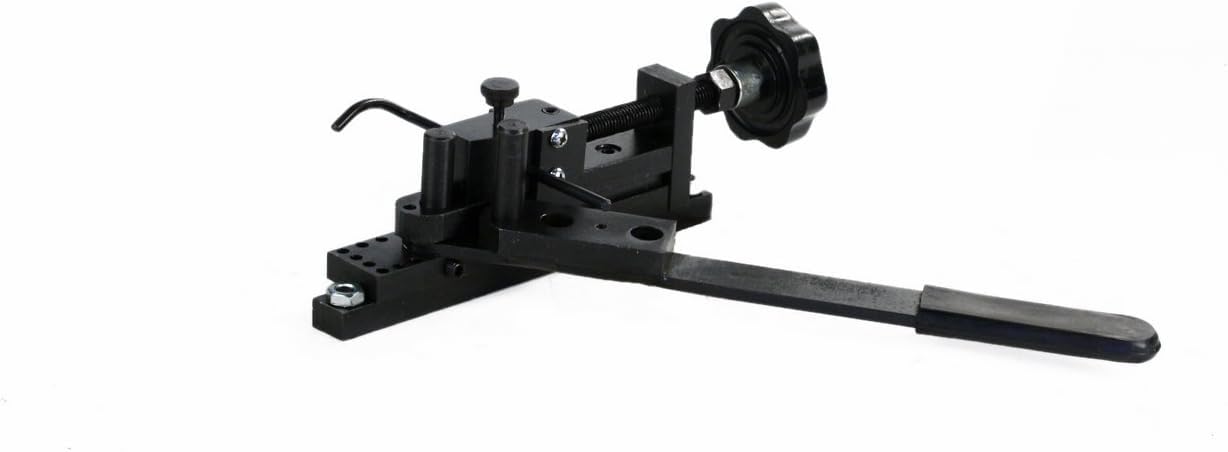

Manual Mounting Mini Universal Bending Bender Forms Wire, Flat Metal and Tubing

Mini Universal Metal Bender Bending Mounting Forms Wire, Flat Metal Tubing DESCRIPTION Using two 13-mm(1/2") shafts, keeping the bending workpiece between block and fixed axis, then rotate the handle a quarter circle, a 90°circle arc lasts. Choosing corresponding specifications of the circle, keeping the workpiece between activity block and circle, loosen the handle after rotating the handle to the right angle, moving the workpiece clamping point then to rotate handle step by step, until the ring form as shown in figure. According to the size of the work piece to select the size of the circle, the circle material can be half a circle, circle, arc curved shapes such as bending. Choosing a appropriate circle and angle module, catching a sheet end between them, loosen the handle after rotating the handle to the right Angle, move the workpiece clamping point to rotating handle, step by step, until the ring form as shown in figure. We can transform clamping points, bend the workpiece of any shape. When you need to bend more than two of the same length, you can use the set rule to locate the workpiece length. Inserting the set rule into the set hole in universal bending machine, while adjusting to a appropriate length, tightening the small knob is ok. Using a appropriate angle module , adjusting the set rule to the appropriate size, clamping workpiece as shown, which can bent square workpiece, increase work efficiency and the accuracy of the workpiece.

• ✅ Forms wire, flat metal & small tubing: You can shape these materials into clamps, handles, brackets, hooks, coils, and decorative forms.
• ✅ Manual operation: It’s hand-powered, so no electricity or air tools are needed — perfect for workshops or hobbyists.
• ✅ Bench or vise mounting: The base lets you attach the bender to a workbench or secure it in a bench vise for stable bending.
• ✅ Bend capacity: Generally handles rods up to about 5/16" (8 mm) diameter and flat stock around 1" × 1/8" size (approx.) depending on model.
• ⚠️ Limitations: Not suitable for bending copper tubing and isn’t designed for heavy-duty industrial bending.
• Made of hardened tool steel, it mounts to a workbench or is held in a visor.
