MeterMate 40kV High Voltage Probe

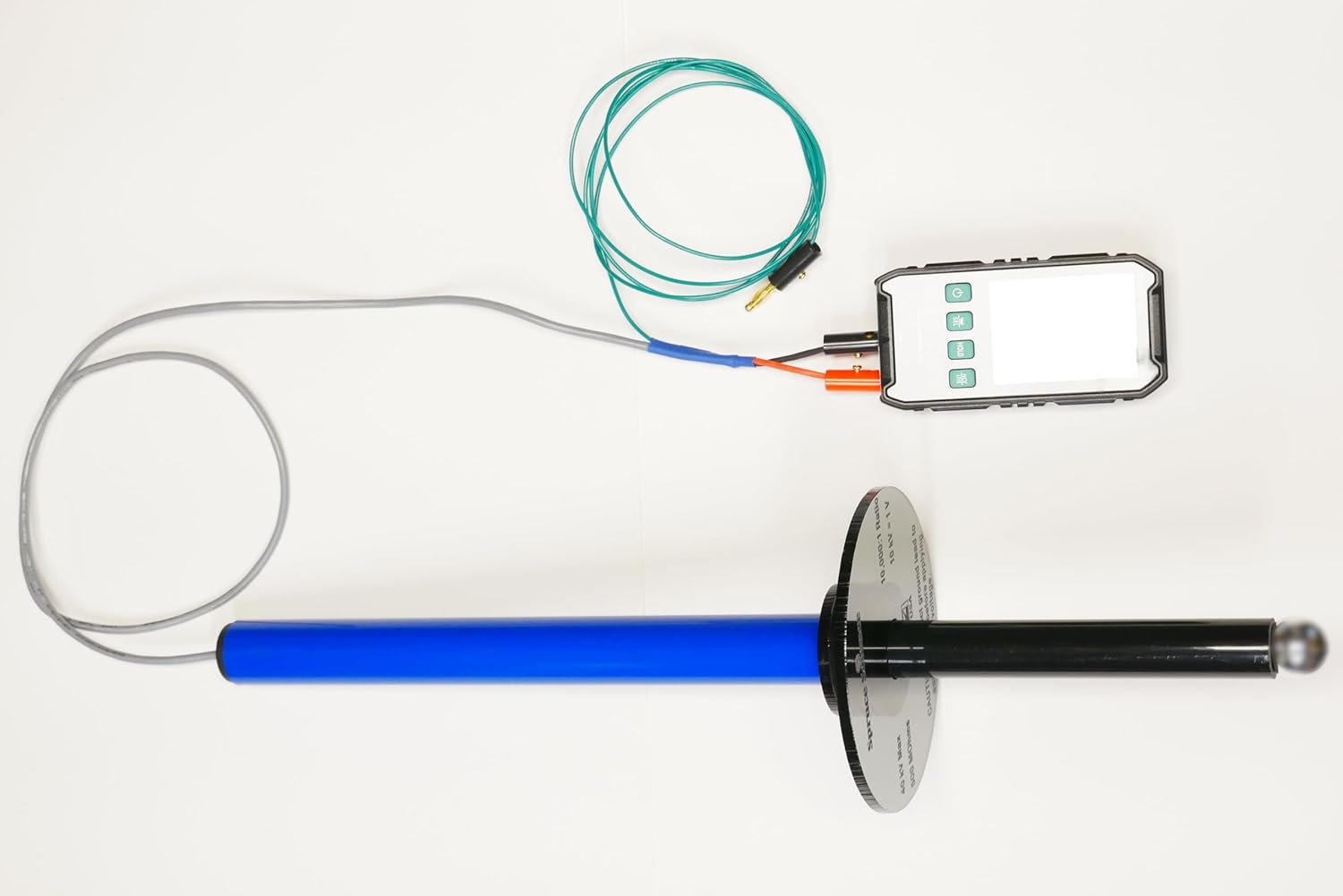

Unleash the full range of your digital multimeter with the Spruce Science MeterMate 40 kV High-Voltage Probe. Engineered for laboratories, field-service engineers, and advanced makers, MeterMate safely scales voltages up to ±40,000 V DC down to a meter-friendly level—all while guarding the operator from dangerous flash-over. A lightweight, extra-long insulated blue handle keeps hands well behind the danger zone, while a black high-dielectric shaft terminates in an aluminum spherical electrode for uniform electric-field distribution. Between them, a semitransparent plastic guard disc blocks surface arcing and doubles as a convenient grip stop. Inside, a precision 500 MΩ divider network provides a 10,000 : 1 ratio, so every 10 kV reads as 1.000 V on virtually any 10 MΩ multimeter—no special HV meter required. ±5 % accuracy is factory-verified across the full range. Attach the red (+) and black (–) safety banana leads to your DMM, clip the green ground lead to true earth, and you’re ready to measure, discharge, and verify high-voltage power supplies, electrospinning setups, ionizers, X-ray generators, Tesla coils, and more.

• 40 kV Range, 10,000 : 1 Divider – Extends any 10 MΩ multimeter to ±40,000 V DC; each 10 kV appears as 1 V for straightforward scaling.
• Safety-First Design – Oversized guard disc and extra-long insulated handle keep hands from live parts, preventing flash-over and surface tracking.
• Dual-Purpose Electrode – Polished aluminum sphere ensures even field distribution and can be grounded to safely discharge capacitors and HV supplies before service.
• Lab-Grade Accuracy – Precision 500 MΩ resistor stack provides ±5 % full-scale accuracy.
• Universal Connectivity – Includes banana-plug leads (+/–) plus green ground lead; plugs directly into handheld DMMs or benchtop meters.
• Measure. Discharge. Verify.—MeterMate turns your everyday meter into a high-voltage analysis tool, giving you kilovolt confidence without kilobuck cost.
