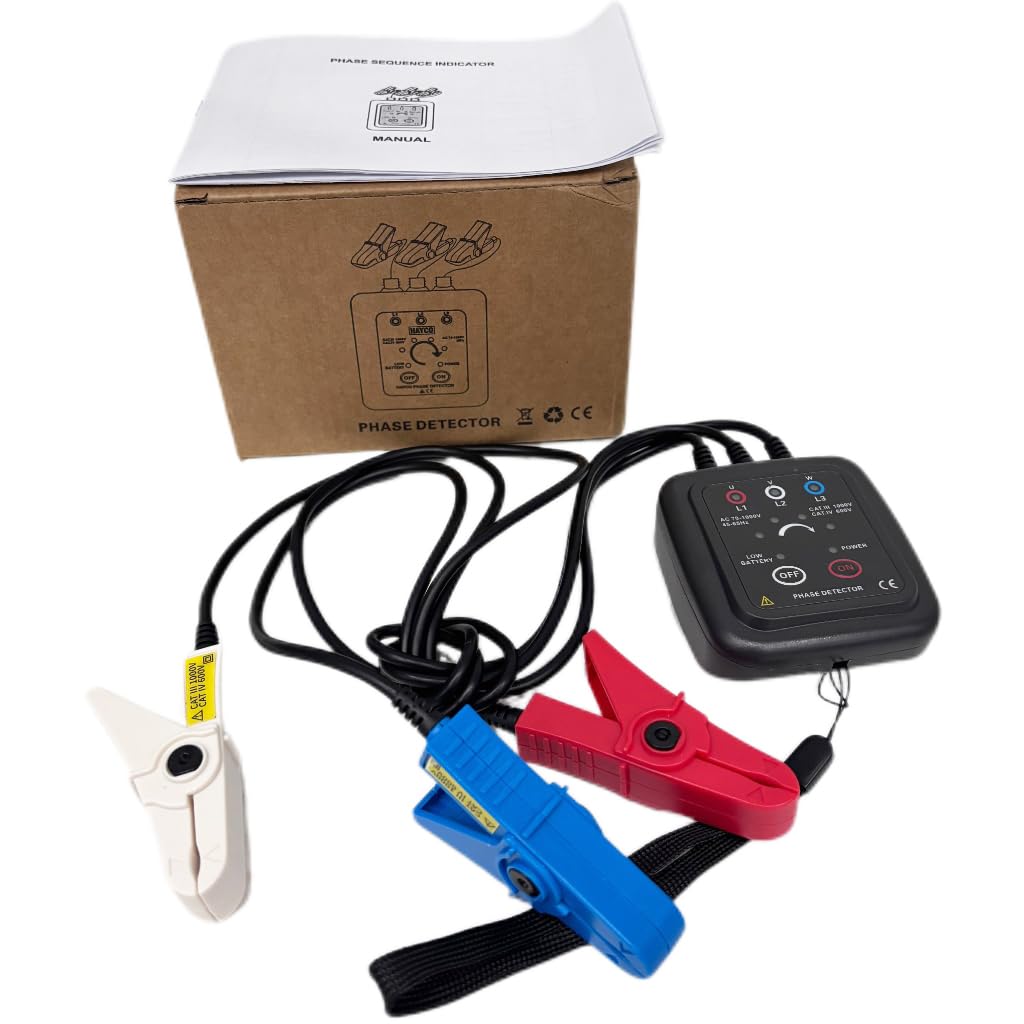

Non-Contact 3 Phase Sequence Detector Tester Detection Meter Phase Rotation Monitor Meter 70 to 1000V AC Phase Sequence and Motor Rotation Tester Meter Tool

YFYIQI Non-contact 3 Phase Sequence Detector Tester Detection Meter Phase Rotation Monitor Meter 70 to 1000V AC Phase Sequence and Motor Rotation Tester Meter Tool Parameter: ☀☀Function: phase detection (normal phase, reverse phase, phase deficiency), live line inspection, simple power inspection, break point location, line maintenance ☀☀Clamp Wire Size: Outer Diameter ø1.6-ø16mm ☀☀Live Voltage Range: AC 70 ~ 1000V, 45/65Hz (sine wave continuous input) ☀☀Auto Power off: After 5 minutes, the meter automatically off power ☀☀Working Temperature and Humidity: -10°～55°; below 80%rh ☀☀Storage Temperature and Humidity: -20°～60°; below 90%rh ☀☀Positive phase: Four lights of phase detection rotate in Clockwise direction, with intermittent short beeps ☀☀Reverse phase: Four lights of phase detection rotate in counterclockwise direction, continuous beep ☀☀Live power: L1, L2, L3 lamp lighting within the voltage setting range; ☀☀Phase deficiency: L1 or L2 or L3 lights are off; ☀☀Open circuit: L1 or L2 or L3 light does not light. ☀☀Beep: Normal phase, the instrument emits intermittent short beeps; in reverse phase, the instrument emits a continuous beep. ☀☀Battery check: The power indicator of the power supply is on after the power is turned on; the battery is low; the LOWBATTERY lamp is on ☀☀Magnetic force: Four magnets are attached to the back of the instrument. Suction and hanging on the distribution box can withstand 800g. ☀☀Clip length: 0.6m ☀☀Measurement maximum voltage: AC1000V ☀☀Insulation strength: 5.4kVrms ☀☀Maximum rated power: 300mVA ☀☀Suitable for safety regulations: EN61010-1:2001, EN61010-031:2002, Pollution Degree 2, CATIII (600V), Instantaneous overvoltage 6000V ☀☀Weight: about 200g ☀☀Size: Wx H x T ,70mm x 75mm x 30mm ☀☀Power supply: 5th battery (LR6) x2 section（Battery not included in the package）

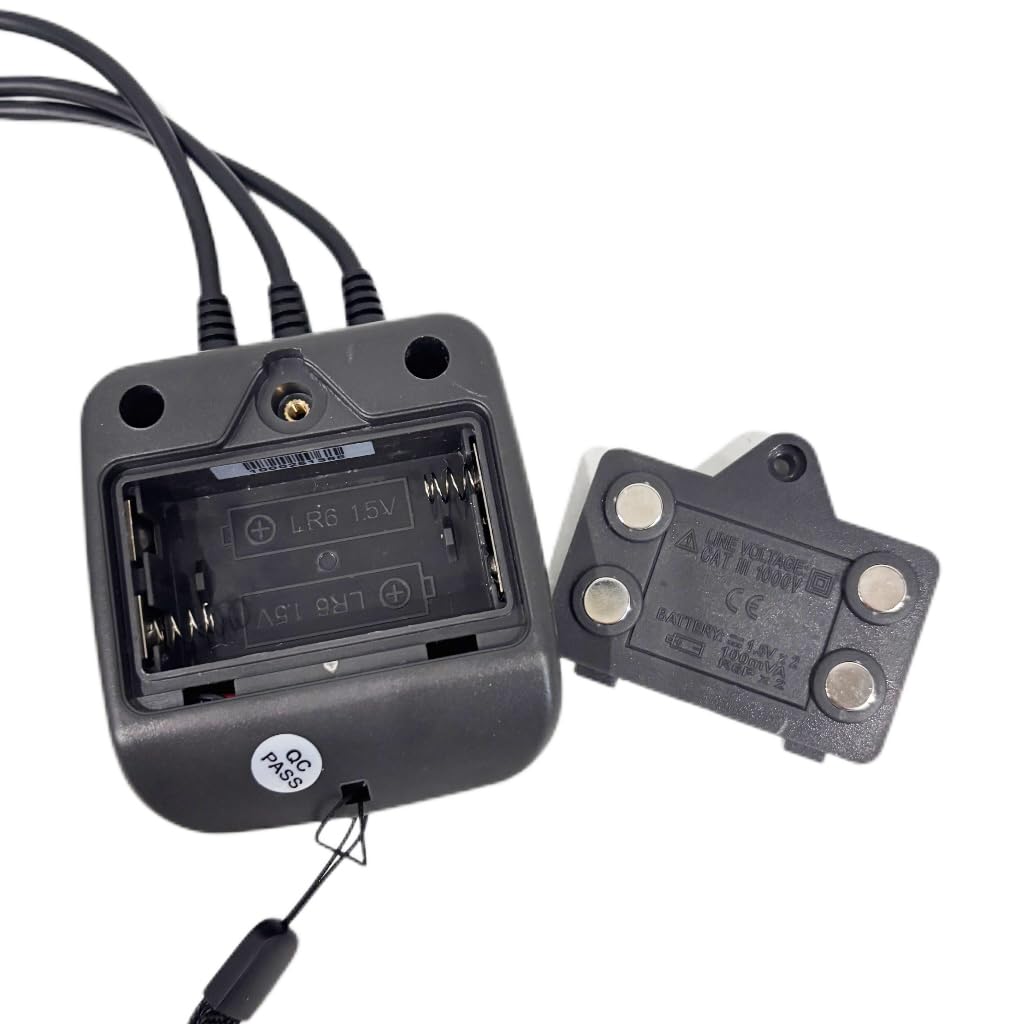

• Instrument base plate is provided with magnet, instrument can adsorbed on the metal shell when testing, the operation more convenient.

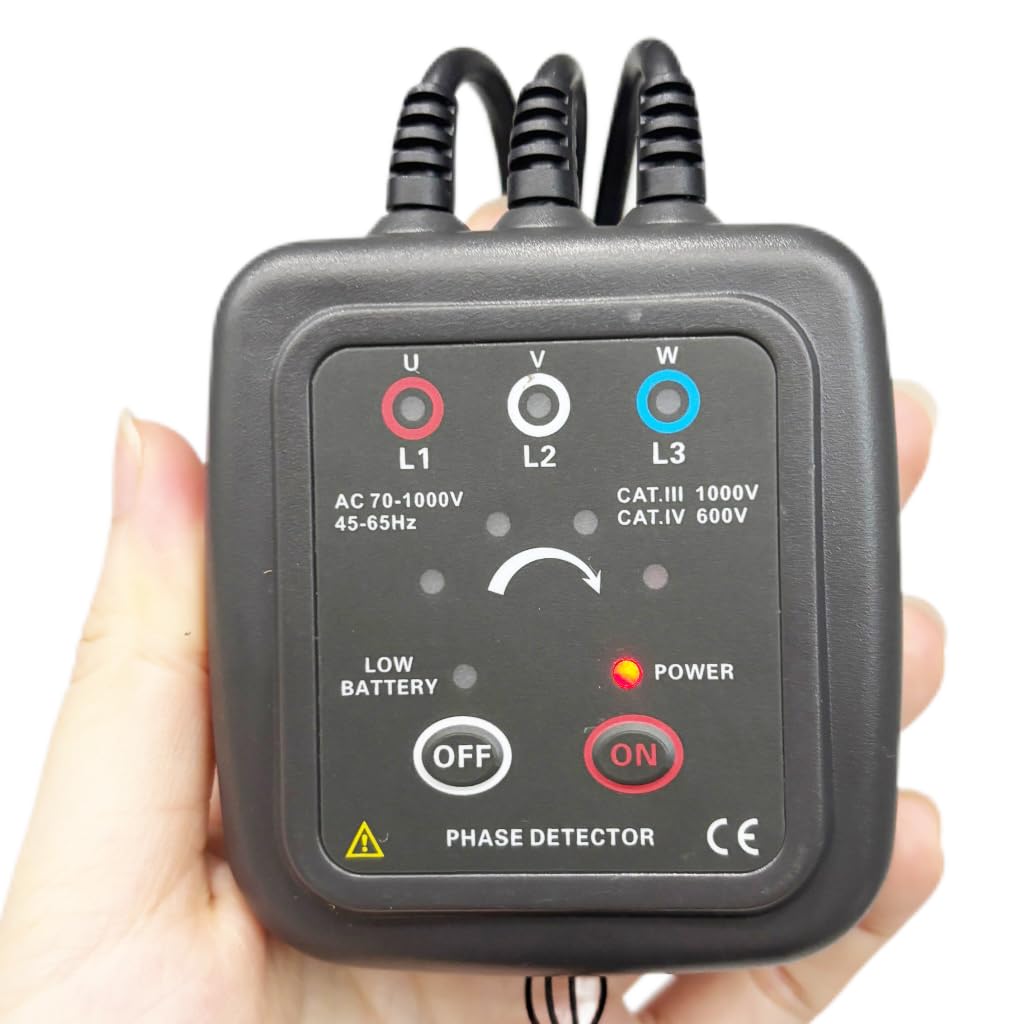

• LED dynamic display, intuitive and clear
• More sensitive clamp, can even sense the AC voltage signal as low as a few Volts, with a wider range of live electricity.
• Better power-saving performance with the maximum rated power of 300mVA.

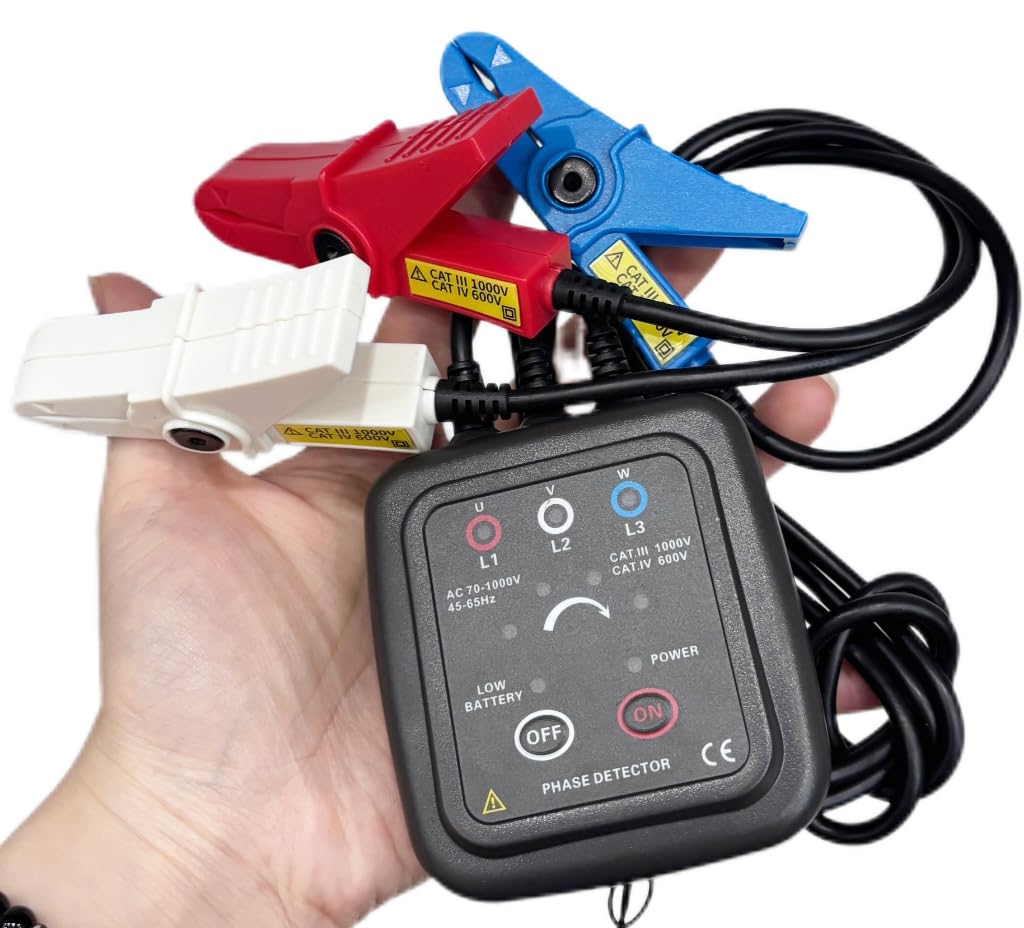

• The three clamps of are in three colors, Red, Yellow and Blue; It is more in line with the distinction of three-phase line, and more scientific and artistic overall appearance.
