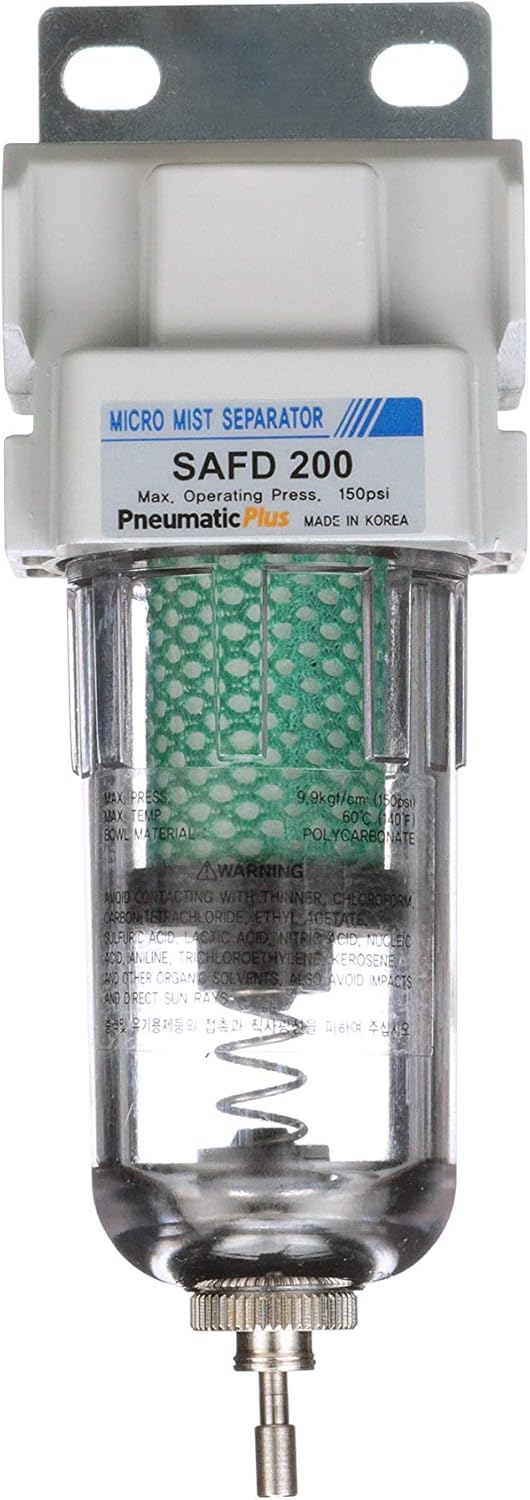

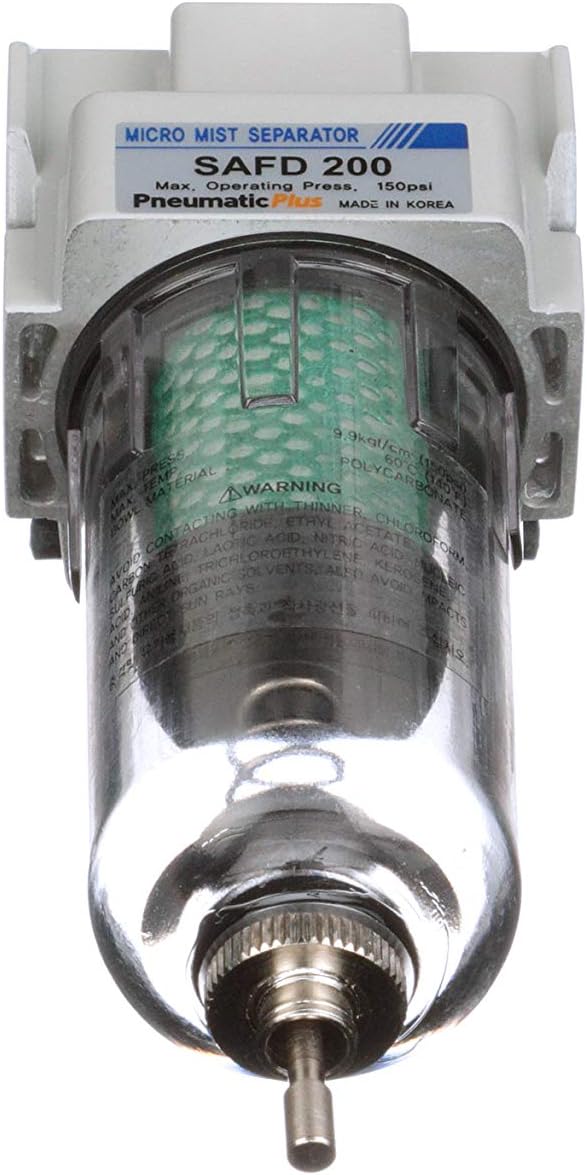

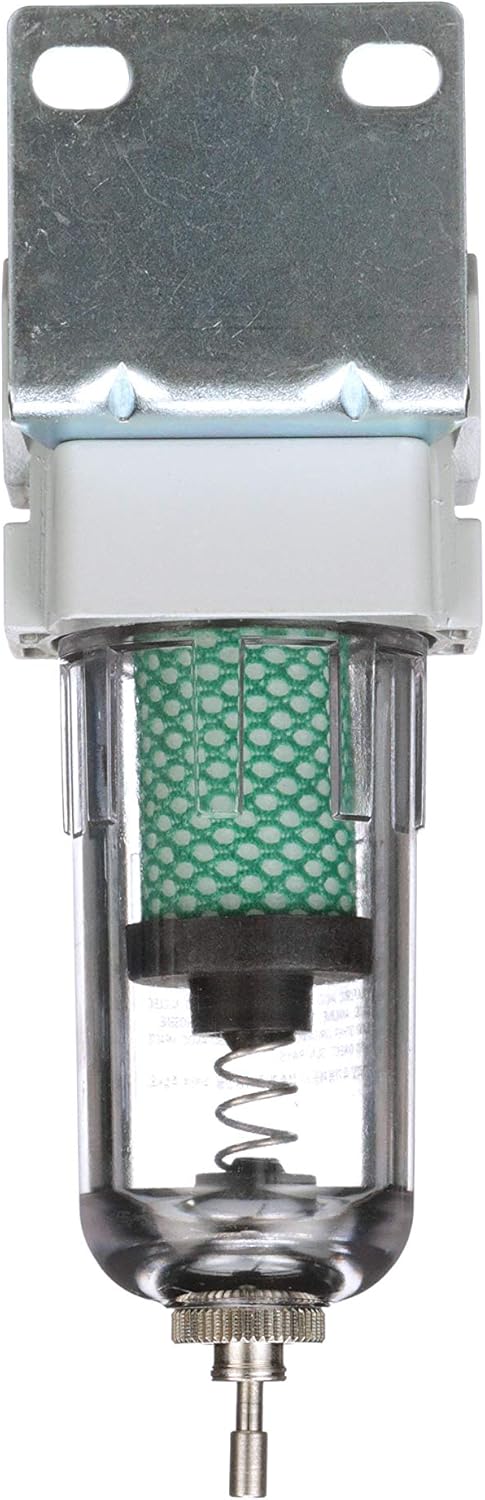

PneumaticPlus SAFD200-N02B Miniature Compressed Air Coalescing Filter, 0.01 Micron 1/4" NPT - Poly Bowl, Manual Drain, Bracket

The SAFD Air Filter is a Coalescing Filter with a 0.01 Micron fiber element. A coalescing filter functions differently from a standard particulate filter: air flows to the inside of the element then outward through a coalescing media. SAFD Coalescing filters are used for high filtration of oil aerosols and sub-micron particles. They are often used with critical instrumentation; Paint Spraying equipment; highly sophisticated air systems; blow molding processes; applications in food industry; and Clean Room environments. This Coalescing Filter offers general industrial filtration with low pressure drop and long element life. It is often used with older compressor models where downstream oil carryover is excessive and longer element life and low pressure drop are a concern. For maximum performance and efficiency, coalescing filters should be preceded by our Particulate filters. *** We recommend using an SAF Series Filter (B00CTEOC7C) as a preliminary filter ahead of this unit to prevent premature clogging. Please visit our Amazon Store for our complete line of air products. DO NOT INSTALL A POLYCARBONATE BOWL IN PRESSURES THAT EXCEED 150 PSI OR WHERE THERE IS A PRESENCE OF SOLVENTS HARMFUL TO POLYCARBONATE.

• Max. Supply Pressure: 250 PSI / Max. Operating Pressure: 0-250 PSI
• 0.01 Micron Coalescing Element / Flow Rate: 4.5 SCFM @ 100 PSI
• Manual Drain, Poly Bowl, Port Size: 1/4" NPT
• Use Metal bowl in pressure exceeding 150 PSI or when solvents harmful to polycarbonate is present
• Bracket Included
