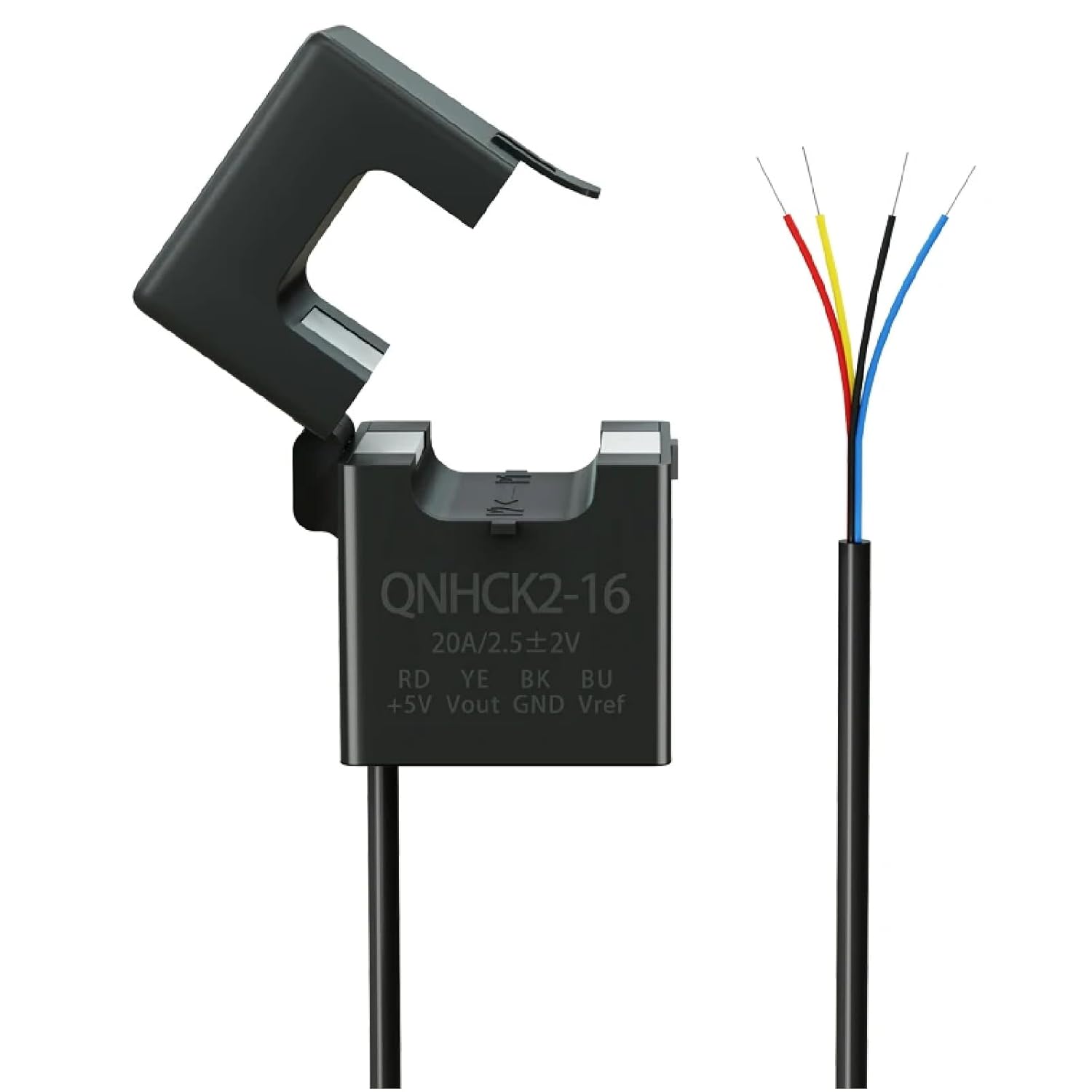

QNHCK2-16 Hall Effect Current Transducer, Split Core Current Sensor, DC 20A-150A, 2.5V Output, 5V Supply, CE RoHS UL Certified (20A 2.5V 0.625V)

The QNHCK2-16 Hall Effect Current Transducer is a precision split-core current sensor designed for accurate measurement of DC currents ranging from ±20A to ±150A. This versatile sensor features a convenient clamp design that allows for easy installation around existing conductors without the need to disconnect or break the circuit, making it ideal for retrofitting and maintenance applications. Operating on a +5V supply, the transducer delivers a proportional 2.5V output signal with variations of ±0.625V to ±2V depending on the measured current, providing reliable analog feedback for monitoring and control systems. With an impressive bandwidth spanning from DC to 25KHz, this sensor captures both steady-state and rapidly changing current signals with precision. The device offers galvanic isolation up to 2.5KV, ensuring safe operation by electrically separating the measurement circuit from the monitored high-current line. Built to withstand demanding environments, it operates reliably in temperatures from -10 to +70°C and can be stored in conditions ranging from -25 to +70°C. This current sensor meets international quality standards with CE, RoHS, and UL certifications, making it suitable for industrial automation, power management systems, motor control applications, and energy monitoring solutions.

• WIDE MEASUREMENT RANGE: Hall effect current transducer supports multiple rated inputs from ±20A, ±30A, ±50A, ±100A up to ±150A, providing versatile current sensing solutions for various DC applications
• SPLIT-CORE CLAMP DESIGN: Features a hinged split-core construction that allows quick and easy installation around existing conductors without disconnecting circuits or breaking wire connections
• HIGH GALVANIC ISOLATION: Provides 2.5KV galvanic isolation (50Hz, AC, 1min) between primary and secondary circuits, ensuring safe operation and protecting sensitive measurement equipment from high voltage transients
• ACCURATE OUTPUT SIGNAL: Delivers a precise 2.5V±0.625V or 2.5V±2V rated output voltage powered by +5V supply, with wide bandwidth from DC to 25KHz for measuring both steady-state and dynamic current signals
• DURABLE CONSTRUCTION: Model QNHCK2-16 operates reliably in temperatures from -10 to +70°F and stores safely from -13 to +158°F, certified to CE, RoHS, and UL standards for quality assurance
