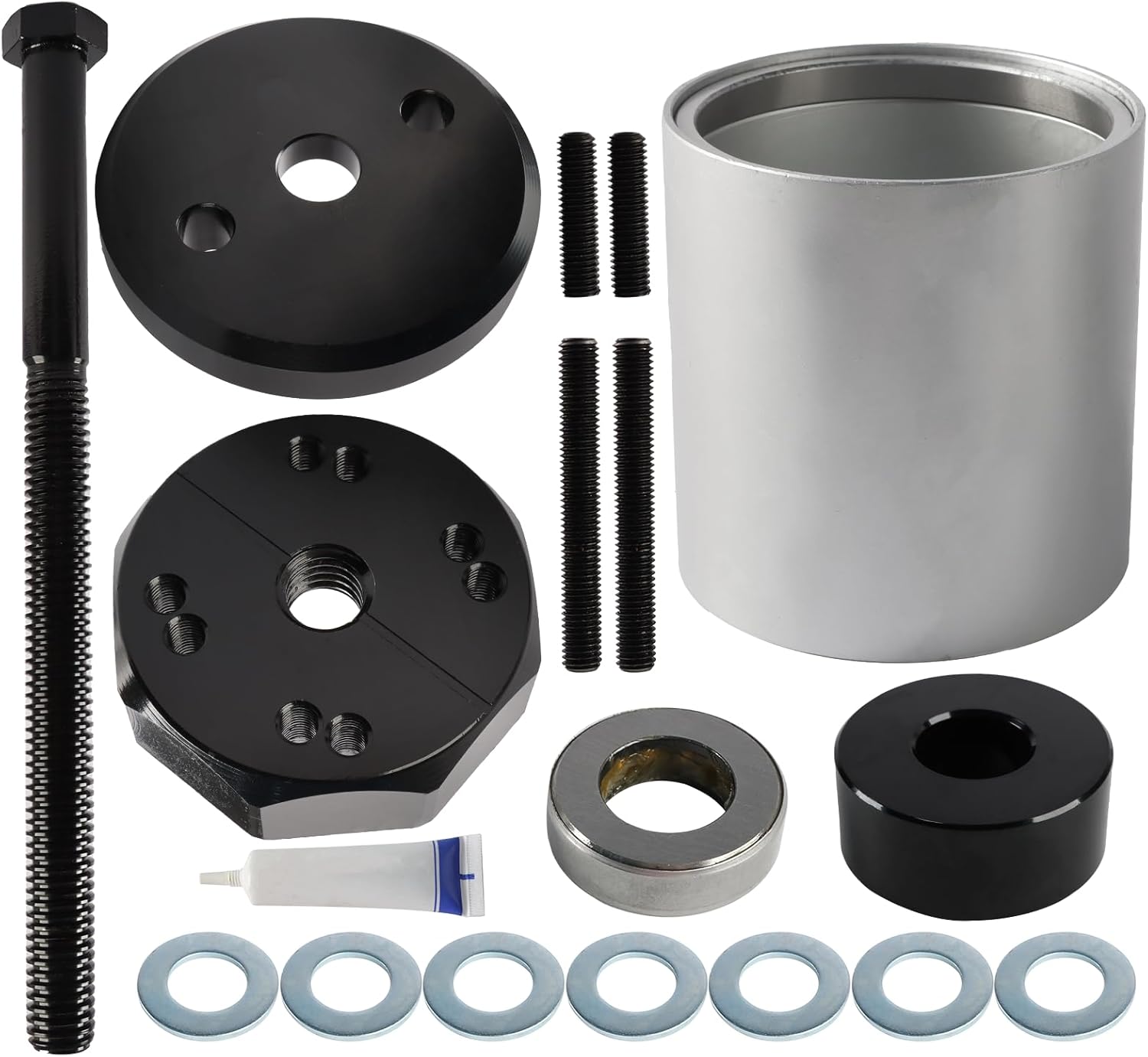

S21307 Bushing Installation Tool Compatible with Hendrickson Turner Intraax Wide Beam Bushing Complete Kit

Removal of Bushing： 1.Scribe the bushing orientation on the beam tube and compression tube. 2.The spring pins are not required to line up with the bushing holes during removal. 3.Tighten retaining nuts to remove slack. Thread on hammer adapter in the event the bushing becomes seized. Hook up hydraulics and begin removal operation. 4.After each 2 inch stroke, re-tighten nuts to take up slack. (Most bushing will require 3-4 adjustments) Installation of Bushing： 1.Lubricate the bushing and insert the bushing into compression cylinder. 2.Place the plunger on top of the bushing, align the mark on the bushing with the mark on the plunger. The 4 corresponding pins to the bushing type you are installing should seat into the bushing. 3.Tighten retaining nuts to remove slack. Thread on hammer adapter in the event the bushing becomes seized. Confirm the plunger is aligned with the scribed mark on the beam tube and the pins are still engaged in the bushing.Hook up hydraulics and begin installation operation. 4.After each 2 inch stroke, retighten nuts to take up slack. (Most bushing will require 3-4 adjustments).Ensure that threads on tool are well lubricated before and during use to avoid damaging threads.

• Direct replacement for Hendrickson S21307 or S-21307, Cross References Compatible with Hendrickson S-21307, Compatible with Meritor R309575, Compatible with Sirco SH2034, Compatible with Tiger Tool 15040, Compatible with BWP HE9AA-T, Compatible with Dayton 334-936, Compatible with Euclid E-9575
• Applications Compatible with Automann TS TRB5912, Compatible with Dayton TS 334-1576, Compatible with Euclid TS E-10729A, Compatible with Flagg TS HT245, Compatible with Gaff TS 13628 Compatible with Hendrickson TS S-24691
• This Bushing Installation Tool is Specially Designed for Hendrickson Tri-Functional Wide Beam Bushings. Works with most Hendrickson, Hendrickson Turner, Watson & Chalin, and Automann suspensions. With its durable construction and high-quality materials, it is guaranteed to make the installation process a breeze
• This Bushing Installation Tool will easily remove and install the Hendrickson Intraax Tri-Functional bushing while the suspension remains on the trailer
• Package including 1 Set of Bushing Installation Tool and lube, Please make sure Use LUBE on Threads of Tool, Thrust Bearing, and Washer Faces, Please also ensure the Bushing is Well Lubed with Bushing Supplied Lube
