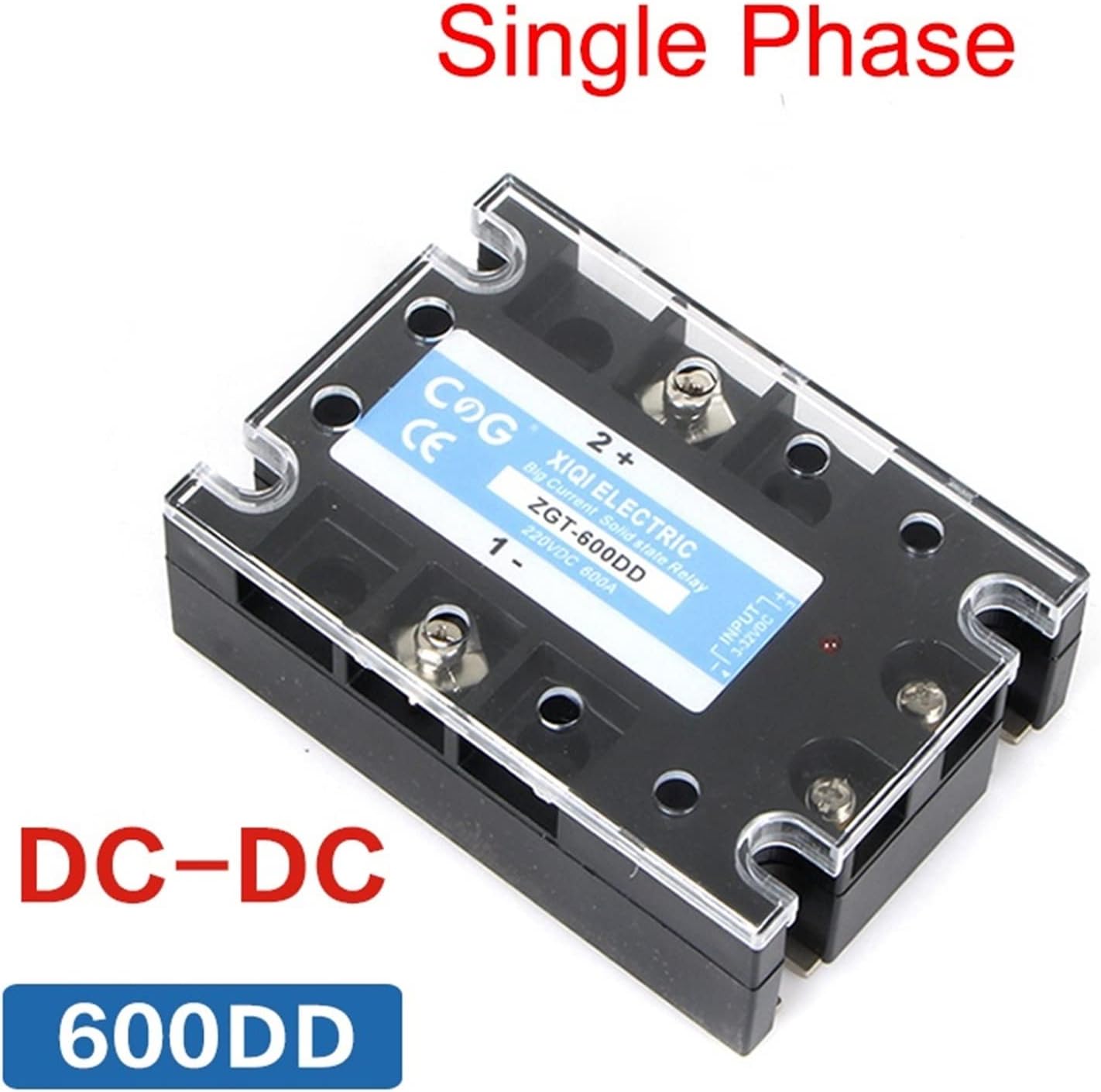

SSR-600DD 600A 220V 600V Big Voltage Single 1Phase JGX DC Control Heat Sink 3-32VDC to 5-220VDC DD Solid State Relay(3-L)

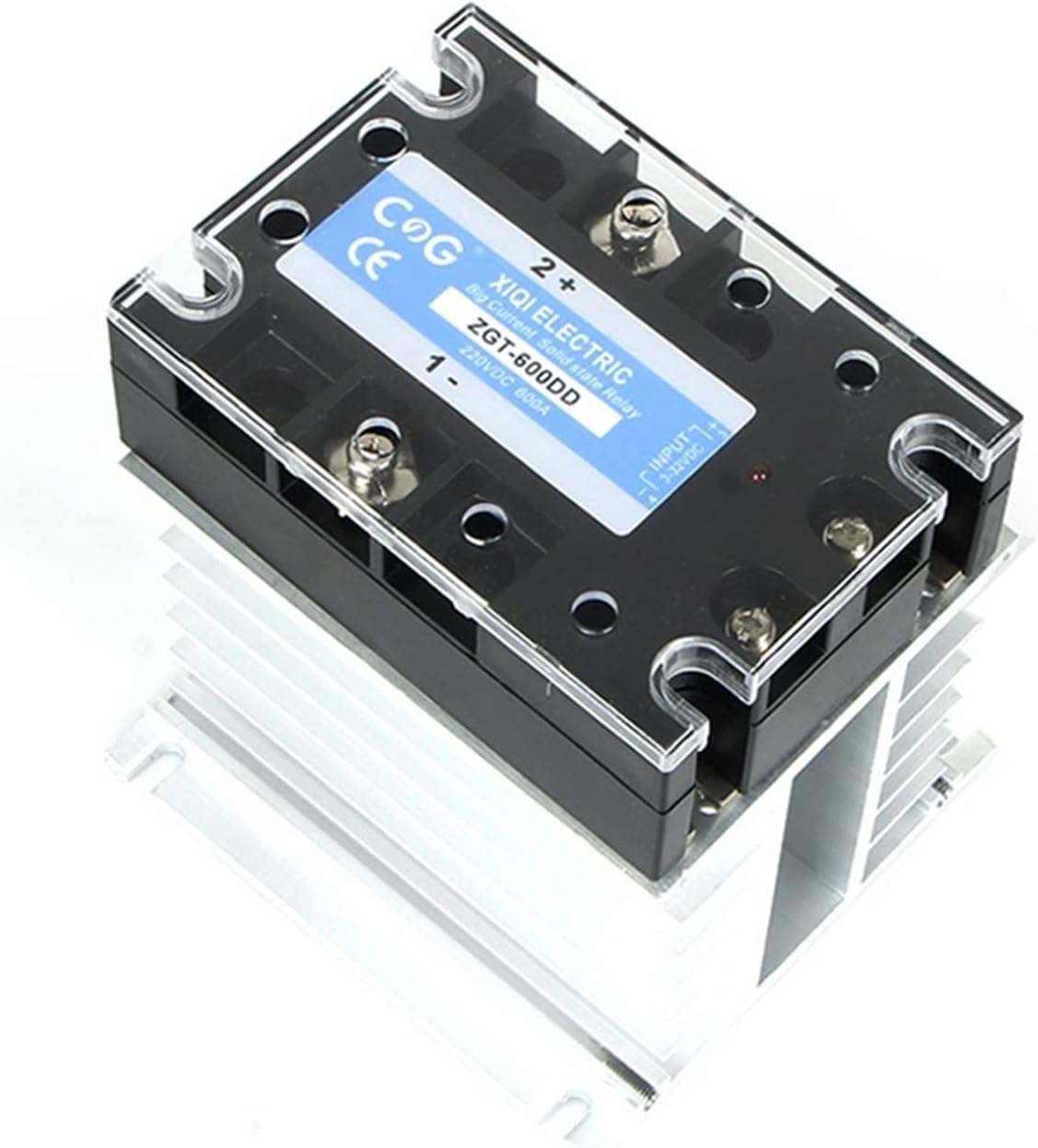

relayAttention:Solar equipment is a mixed load, we do not recommend using solid state relays.If you want to try, you need to buy a solid state relay with 10 times the current.At the same time, if the solid state relay does not work normally on the solar equipment, we do not provide return service.STEP 1: Choose a correct control ModeAA: AC Control ACDA: DC Control ACDD: DC Control DCVA: voltage regulatorSTEP 2: Choose a correct typeCurrent of Equipment/Ratio = Current of SSRPS: The Ratio depend on the kind of your loading equipment.Resistive load :70%, Inductive load:20%,Capacitive load:10%.STEP 3: Choose a suitable heat sink.During the useage of SSR, it will give out a lot of heat, so in order to extend the life of your SSR, please install a heat sink , also if the current is over 60A,the cooling fan also required.PS: Our Heat Sink include 2 screws (for install heat sink) and a pack of thermal compound (is applied to the bottom of the SSR)NOTICE:The inside of the solid-state relay is a semiconductor. A semiconductor switch is a non-physical contact switch. if use a multimeter diode or resistor to test ,it always show a high-impedance state, (multimeter light red).According to the conventional detection methods of solid state relays: a load is required to test the switching state. Using an incandescent lamp as a dummy load is an obvious way to test continuity.
