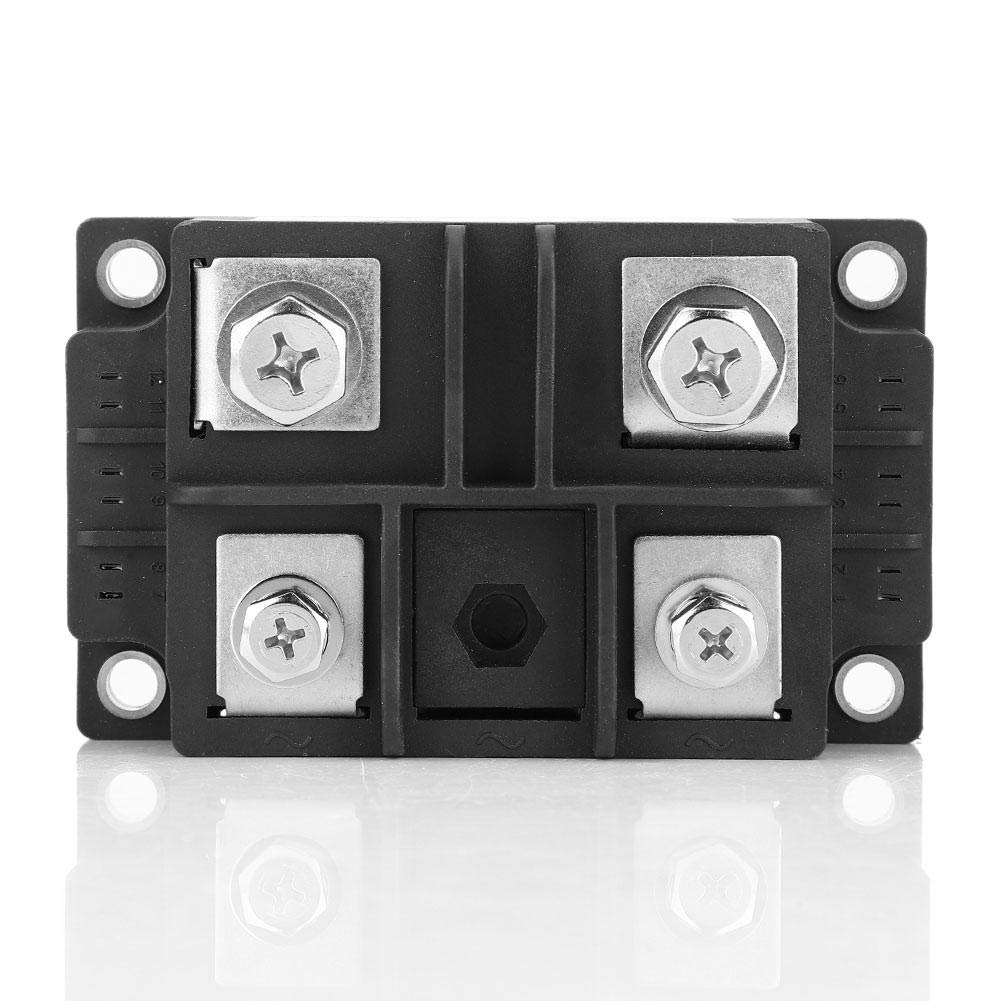

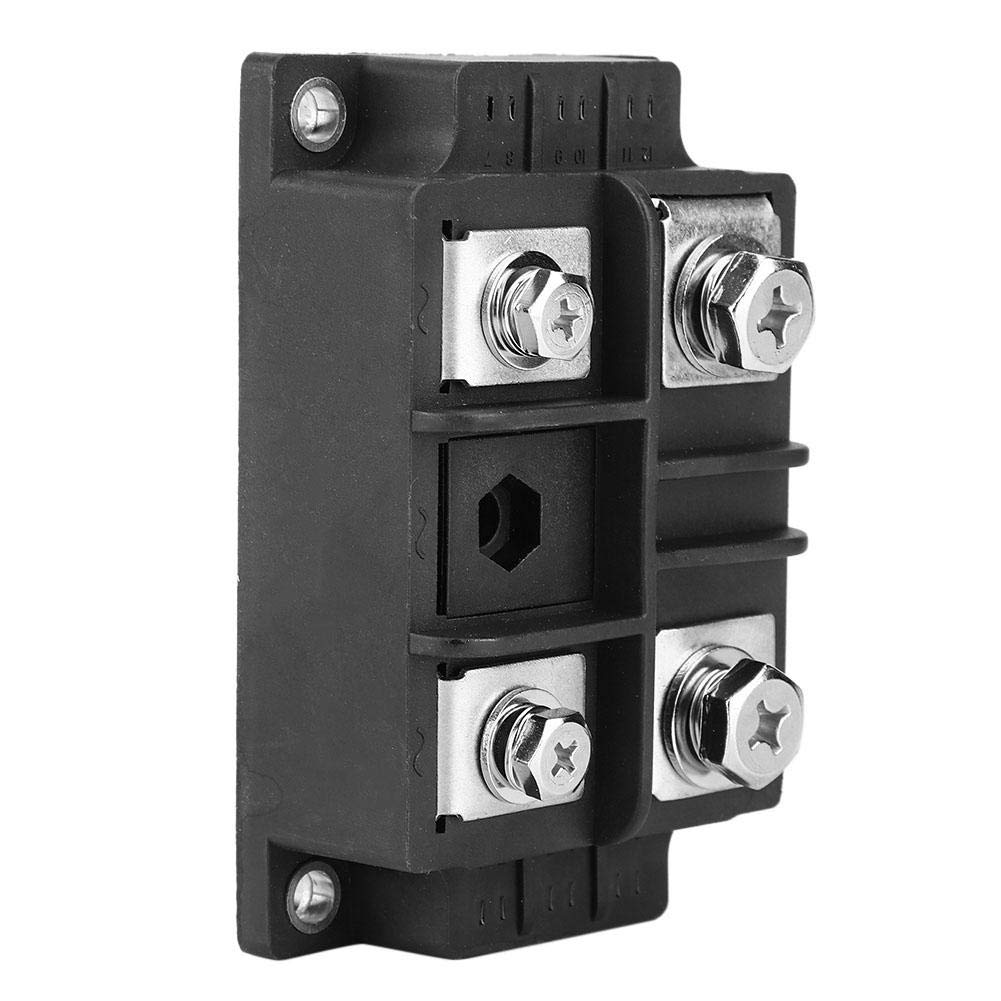

Three Phase Bridge Rectifier, Bridge Rectifier 1Pc MDQ300A 1600V 110 * 67 * 40mm Single-Phase Diode Bridge Rectifier

Specifications: Output Current: 300A Three Phase Input Positive Average Current: 100A Repetitive Peak Reverse Voltage(VRRM): 1600V Repetitive Peak Inverse Current(IRRM): 10mA Isolation Voltage(Viso): 2500VAC VTM: 1.5V : 300A Phase: Single Phase Terminals: 4 . Junction Temperature: 150℃ Size: 110*67*40mm / 4.33*2.63*1.57" Quantity: 1 Package Includes: 1 x Bridge Rectifier

• 【Single-Phase Diode Bridge Rectifier】: This is a high-quality bridge rectifier used to convert AC input to DC output.
• 【High stability】: The bridge rectifier is a welded structure, with excellent temperature characteristics and power cycle capability; it can ensure more The chip is electrically insulated from the bottom plate, with an AC voltage of 1600V, up to 2500V.
• 【Easy to dissipate heat】: MDQ300A is specially designed for single-phase rectification, and the output DC current is 300A. It has a large overcurrent capacity, good heat dissipation and low voltage drop.
• 【Widely used】: Bridge rectifiers adopt vacuum + hydrogen charging welding technology; the maximum operating junction temperature is 150℃; the forward pressure drop is small. This high-power bridge rectifier can be widely used in power supplies.
• 【Easy to install】: It is small in size and light in weight; it is easy to install, with 4 terminals, and it is convenient to use and maintain.
