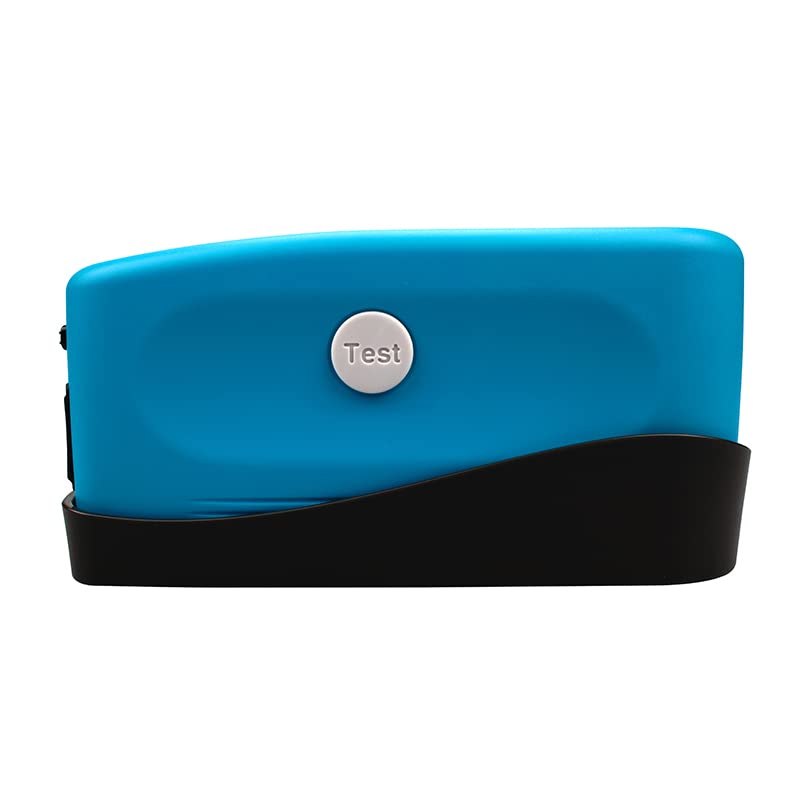

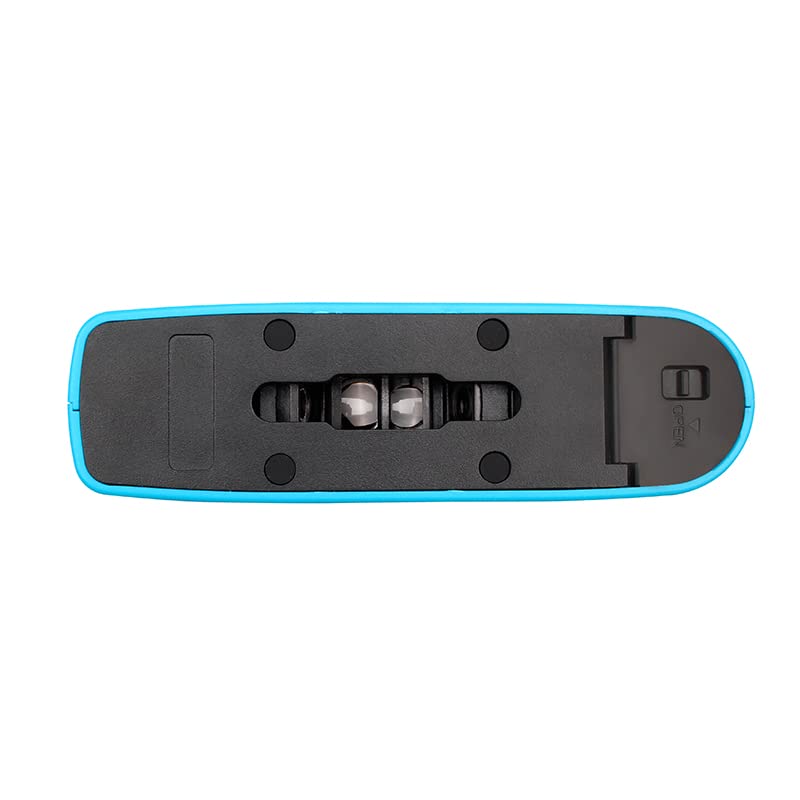

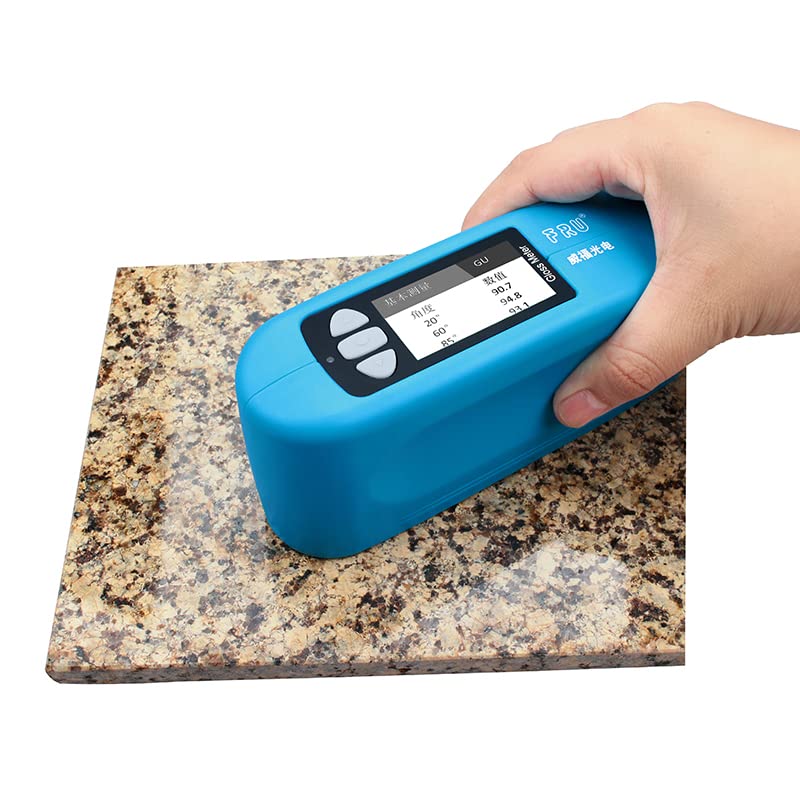

WG68 Gloss Meter 20 60 85 Degree Glossmeter for Measure Stone, Paint, Ink, Marble, Floors, Range 0.0~2000.0 GU

WG68 gloss meter is produced according to the national verification regulation of JJG696 standard, adopt long life light source, good repeatability, small volume, high precision and good stability. It is mainly used coatings, printing ink, paint, paint, wood, marble, granite, bo to change polishing brick, brick of pottery and porcelain, plastic, paper, metal and non-metallic materials to the surface of the mirror gloss measurement. Specification Product Name: Gloss meter Model: WG68 Measurement Range: 20°: 0-2000 60: 0-1000Gu 85°: 0-160Gu Application: Apply on paint, ink, stoving varnish, coating, wood products; Marble, granite, vitrified polished tile, pottery brick and porcelain; Plastic, paper; Other nonmetallic material. Instrument Dimensions: 159x49x72mm Projection Angle: 20° 60° 85° Measuring Spot:（ellipse: long axis*minor axis）20°: 10x10 / 60°: 9x15/ 85°: 5x38 Measuring Mode: Statistics Mode/sampling Mod/Continuous Mode/manual measurement/single measurement/average measurement and cross measurement for a variety of combination measuring mode Standard Sample Setting: Manually setting/bring out stored data for setting/manually setting tolerance Data Storage: 5000 groups Language: English Output: connect the micro printer to realize real-time output of measured data Division Value: 0-1000:0.1 1000-2000:1 Repeatability: 0-100:0.2 >100:0.2% Indication Error: ±1.5 International Standard: ISO－2813、ASTM－C584、ASTM－D523、DIN－67530、ASTM－D2457、JND-A60、JND-P60 Standard Accessories 1 x Power adapter 1 x User manual 1 x Warranty certification 1 x Standard board 1 x Software GlossW

• One button to complete triangle measurement: one operation can complete three angle measurement; Measuring light incident angle meet ISO 2813 three measuring light incident angle. Three incidenct angle of mirror gloss meter is 20 ° 60 ° 85 ° respectively.
• Accurate: Precison measurement performance with core technological competence, Accuracy 0-1000:0.1(GU), 1000-2000:1(GU). The excellent stability △gu ≤ 0.2
• More modes: Optional angle mode(choose measuring angle or angle combination according to user needs),Sampling mode,Signs for low battery and full memory. Automatic calibration etc.
• Large data storage: 5000 test records storge, data storage structure:100 samples and it can save 500 group data for each sample.
• Application: Apply on paint, ink, stoving varnish, coating, wood products; Marble, granite, vitrified polished tile, pottery brick and porcelain; Plastic, paper; Other nonmetallic material.
• Complies with international standards: ISO－2813、ASTM－C584、ASTM－D523、DIN－67530、ASTM－D2457、JND-A60、JND-P60
