WTA15 Four-Way Four-Channel Input Intelligent Digital Weighing Transmitter 4-20mA/0-5V/0-10V

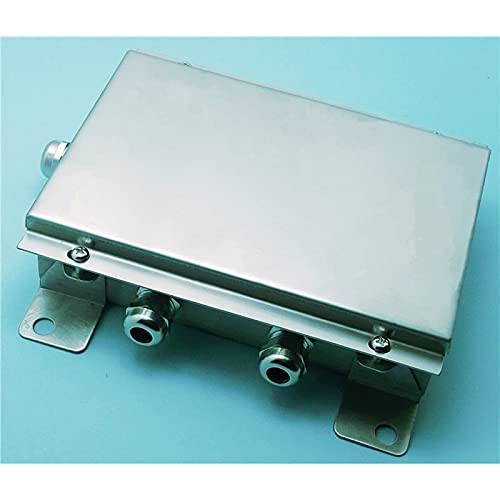

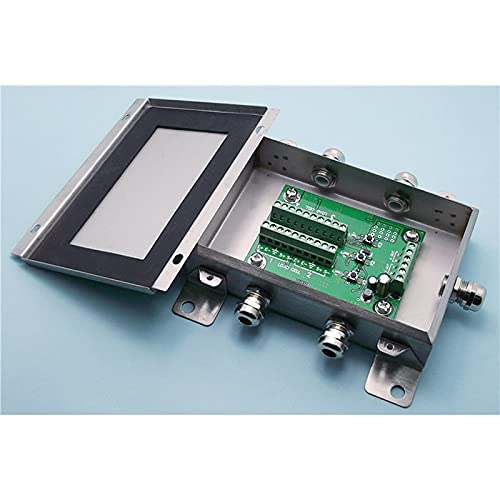

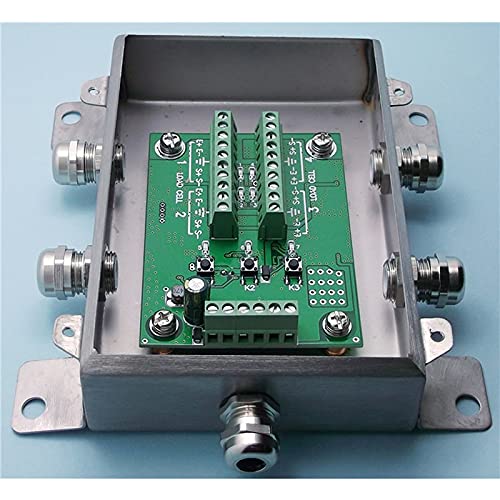

WTA15 digital weight transmitter, with 4 independent ADC sensor input channels, and introduced the angular difference correction technology for digital truck scale, only need to press the angle of each sensor once, through the internal calculation, complete the angular difference Corrected. Each channel signal is independent of each other and has its own independent LED status indication. Output analog signal current/voltage synchronous output, which can be controlled by software to realize 0~5V or 0~10V output by software. There are 5 matching modes for input and output. The outer casing is made of stainless steel sealed waterproof box, suitable for all kinds of harsh environments.Independent 4-channel input, independent ADC for each channel.Dual channel analog output.Can form 2 independent transmitters.Easy to correct the angular difference: only need to press the angle of each load point once.Power supply range: DC 12~24V4~20mA output, load 250Ω, power supply range: 12~24V.4~20mA output, load 500Ω, power supply range: 15~24V.0~5V output, load ≥10KΩ, power supply range: 12~24V.0~10V output, load ≥10KΩ, power supply range: 15~24V.Sensor supply bridge voltage: 5V.Number of sensor loads: 350Ω bridge sensor, up to 16.AD sampling rate: 40sps (times / second).Filter depth can be set: 1~13 levels adjustable, default value 3.The output voltage signal range can be set: 0~5V and 0~10V can be switched by button.Temperature performance:0~+40°C: zero point and gain temperature drift ≤80PPM/°C-20~+60°C: zero point and gain temperature drift ≤100PPM/°CLinearity: Within the range: ≤0.02% Comprehensive accuracy: better than 0.2?0 °C temperature difference.Resolution: better than 0.01%Output ripple: ≤15mVp-pItem specifics:Type: Logic ICsCondition: NewModel number: WTA15

• Type: Logic ICs
• Condition: New
• Model number: WTA15
