BESTAR Electromagnetic Buzzer External Driving Circuit

Application: Consumer Electronics

Brand: BESTAR

Add to Wishlist
SKU: SMT5555-03H2.5 LF Categories: ,


Shipping:FedEx, UPS, DHL

Our magnetic buzzers provide consistent and efficient audio signaling with quick response and low power requirements. Utilizing electromagnetic drive technology, they offer stable performance, clear sound output, and excellent cost-effectiveness. Ideal for use in consumer electronics, household appliances, industrial controls, and medical devices, these buzzers are available in a variety of sizes and mounting options. Whether for alerts, timers, or status indicators, our magnetic buzzers ensure reliable sound performance across diverse applications.

Details

Product Features

External driving circuit
Reflow soldering
RoHS

Product Parameter

1. Rated Voltage 3Vo-p
2. Operating Voltage 2.5-4.5Vo-p
3. Rated Current (3Vo-p,3100Hz, 1/2duty,square wave) ≤120mA
4. Coil Resistance 10±1.5Ω
5. Sound Output(3Vo-p,3100Hz, 1/2duty,square wave,10cm) ≥80dB
6. Resonance Frequency 3100Hz
7. Operating Temperature ’-40...+85℃
8. Storage Temperature ‘-40...+85℃
9. Weight ≈0.6g

Haptic Actuator Measurement Circuit

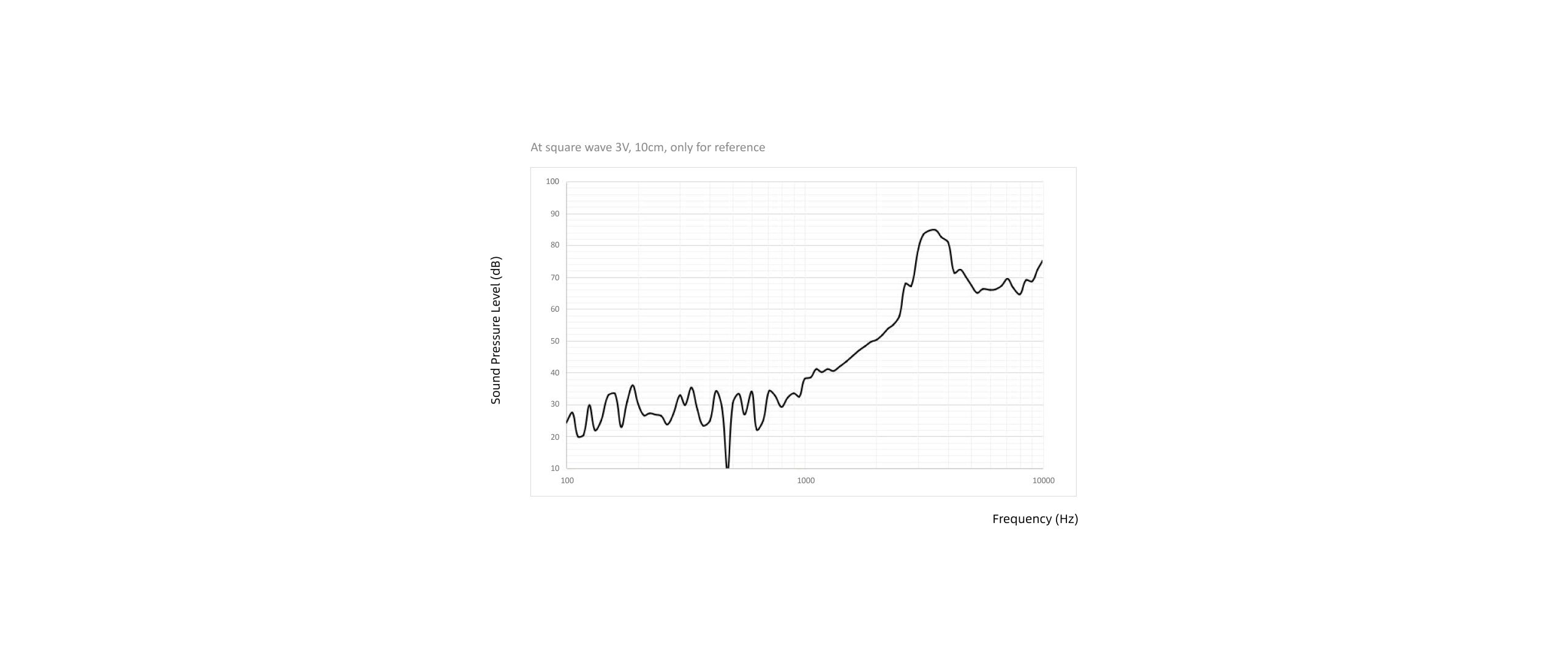

Frequency Response Diagram
